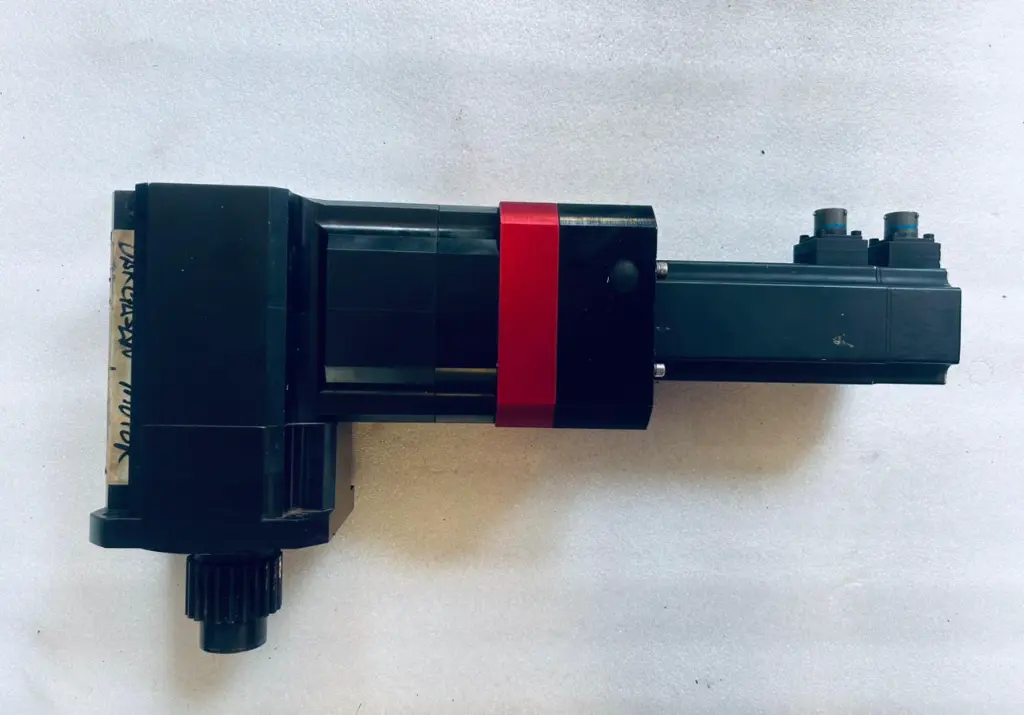

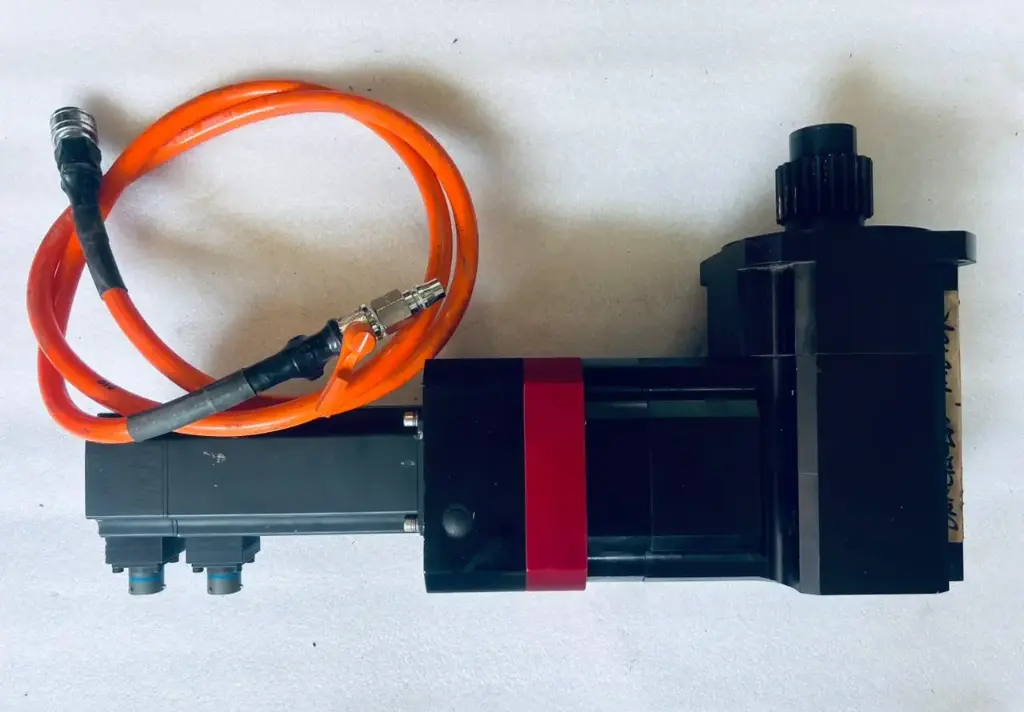

DTR115-250-S-RM115-132 Thomson Micron
| Attribute | Details |
| Product | Thomson Micron DuraTRUE 90° Size 115 Gear Motor – DTR115-250-S-RM115-132 with Bental Servo Motor |
| Brand | Thomson Micron (Thomson Industries Inc) |
| Motor Brand | Bental Industries Ltd |
| Model | DTR115-250-S-RM115-132 |
| Part Number | 32-416031-8936 |

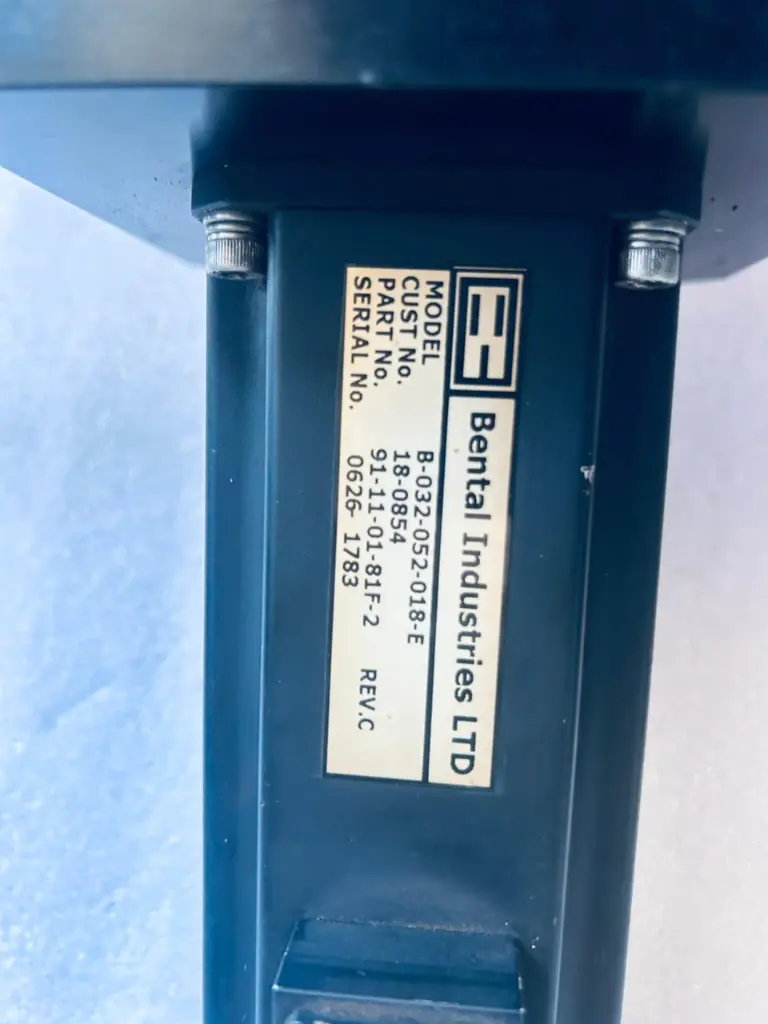

| Motor Model | B-032-052-018-E |
| Motor Customer No. | 18-0854 |
| Motor Part Number | 91-11-01-81F-2 |
| Motor Revision | Rev. C |
| Serial Number (Gearbox) | 672494 – 0022 |
| Serial Number (Motor) | 0626-1783 |
| Product Type | Right-Angle Precision Gear Motor with Brushless Servo Motor, Encoder & Integrated Pneumatic Brake |
| Series | DuraTRUE 90° Series – Size 115 |
| Function | Delivers high-torque, low-speed precision rotary output via 90° right-angle gearbox driven by Bental brushless servo motor; integrated pneumatic brake ensures safe holding and controlled stopping; encoder provides accurate closed-loop position feedback for precision motion control applications |
| Gear Type | 90° Right-Angle Precision Reduction Gearbox |
| Gear Ratio | 250:1 |
| Frame Size | Size 115 |

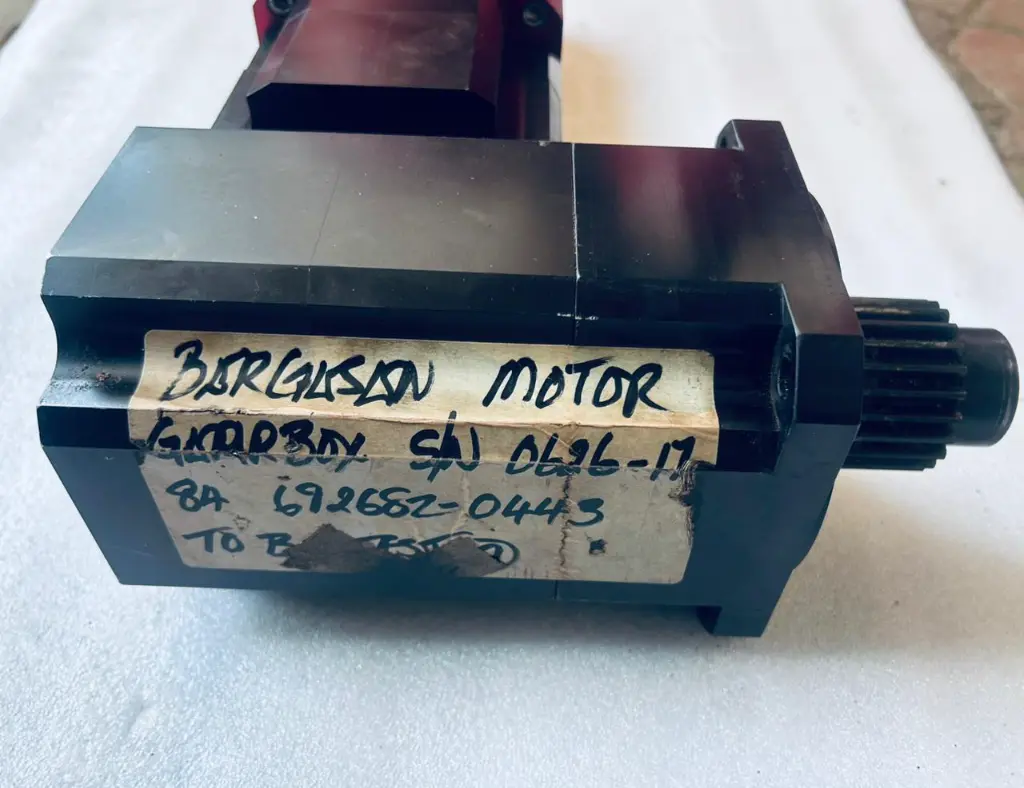

| Output Shaft | Precision spur gear output (helical gear drive – as visible in image) |
| Motor Type | Brushless DC Servo Motor (Bental B-032 Series) |

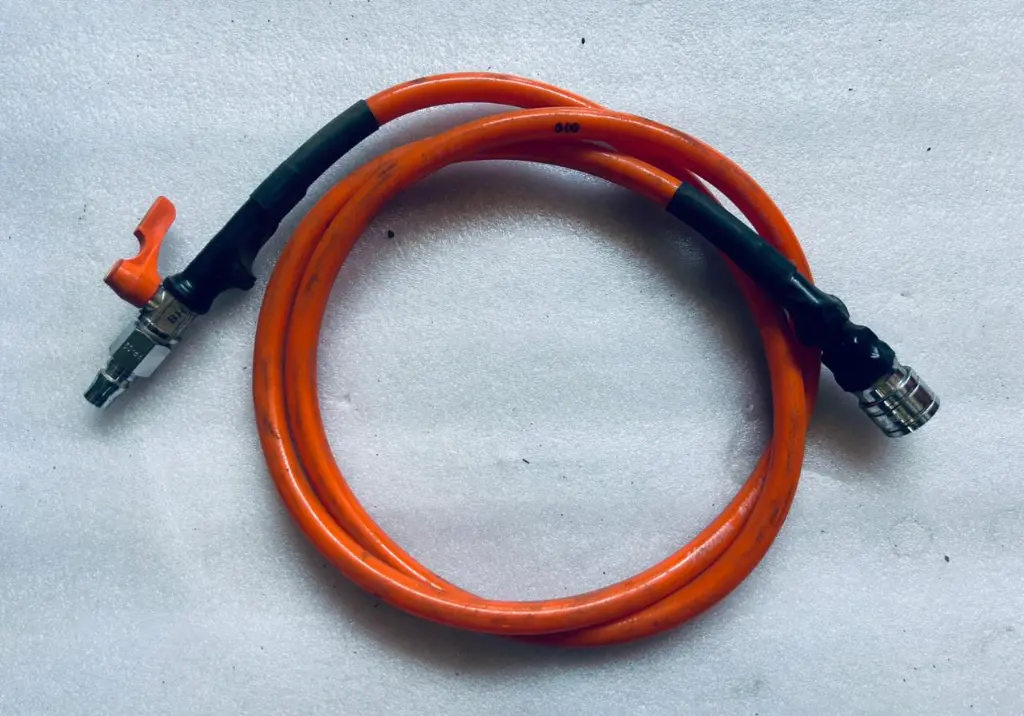

| Brake Type | Integrated Pneumatic Brake with external pneumatic hose connection (orange hose – as visible) |
| Encoder Type | Integrated Encoder (E suffix – built into Bental motor) |

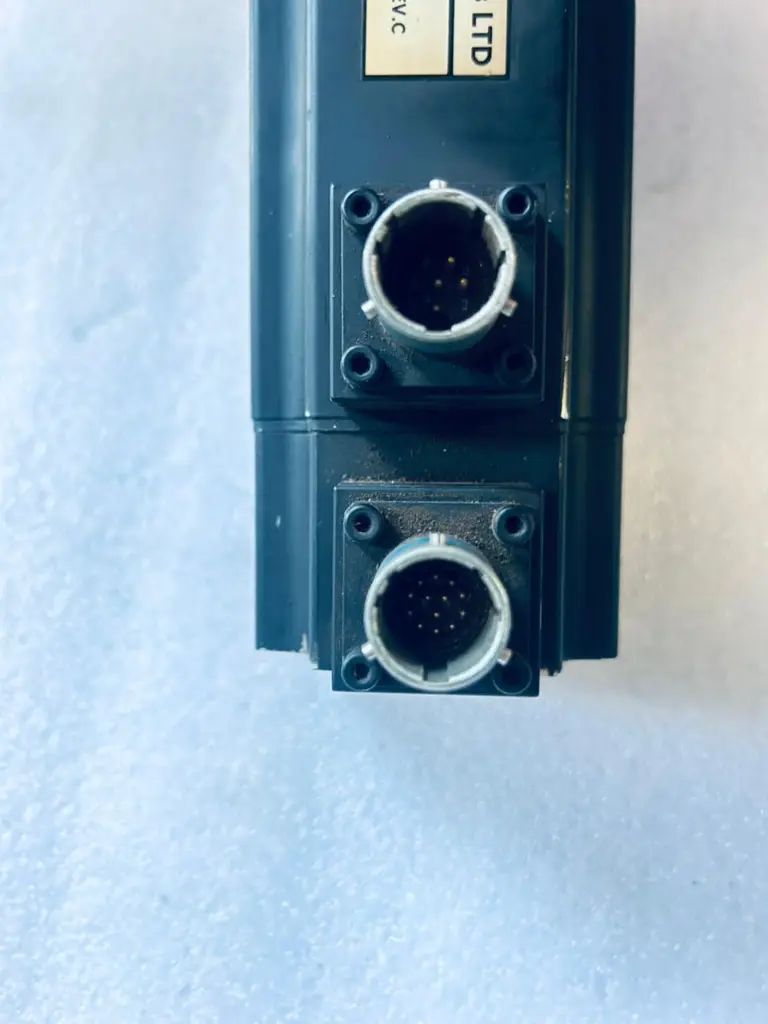

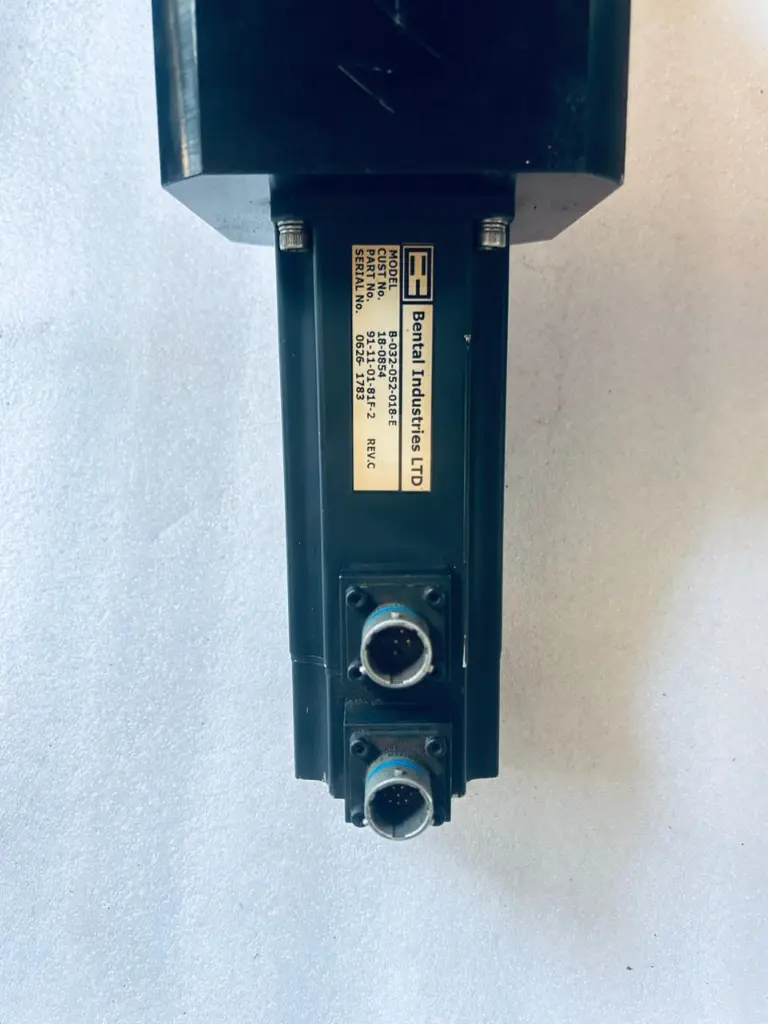

| Connector Type | Dual circular military-style connectors (motor power + encoder feedback) |
| Pneumatic Port | Push-fit pneumatic connector for brake actuation |
| Insulation Class | Class F (155°C) |
| Bearing Type | Precision ball bearings – input and output stages |
| Housing Material | Hard anodised aluminium alloy – Black finish |
| Mounting Type | Flange Mount |
| Protection Rating | IP54 – Dust and Splash Protected |
| Operating Temperature | -10°C to +40°C (ambient) |
| Humidity Resistance | Up to 90% Non-Condensing |
| Standards Compliance | CE Marked |
| Manufacturer (Gearbox) | Thomson Micron / Thomson Industries Inc, Amherst, NY 14228, USA |
| Manufacturer (Motor) | Bental Industries Ltd, Israel |
| Country of Origin | USA / Israel |
| Application | Precision Positioning, Robotics, CNC Machinery, Automated Assembly, Semiconductor Equipment, Defense & Aerospace Ground Systems |
| Suitable For | Industrial Automation, Medical Equipment, Material Handling, Packaging Machinery, Marine Automation, High-Precision Motion Control |
| Condition | New – Open Box |
| Availability | In Stock |
Just drop us a message and we will get back to you as soon as possible.
Available for sale.
Ready Stock
Price: On Request
Worldwide Shipping
Testing video will be share before dispatch
