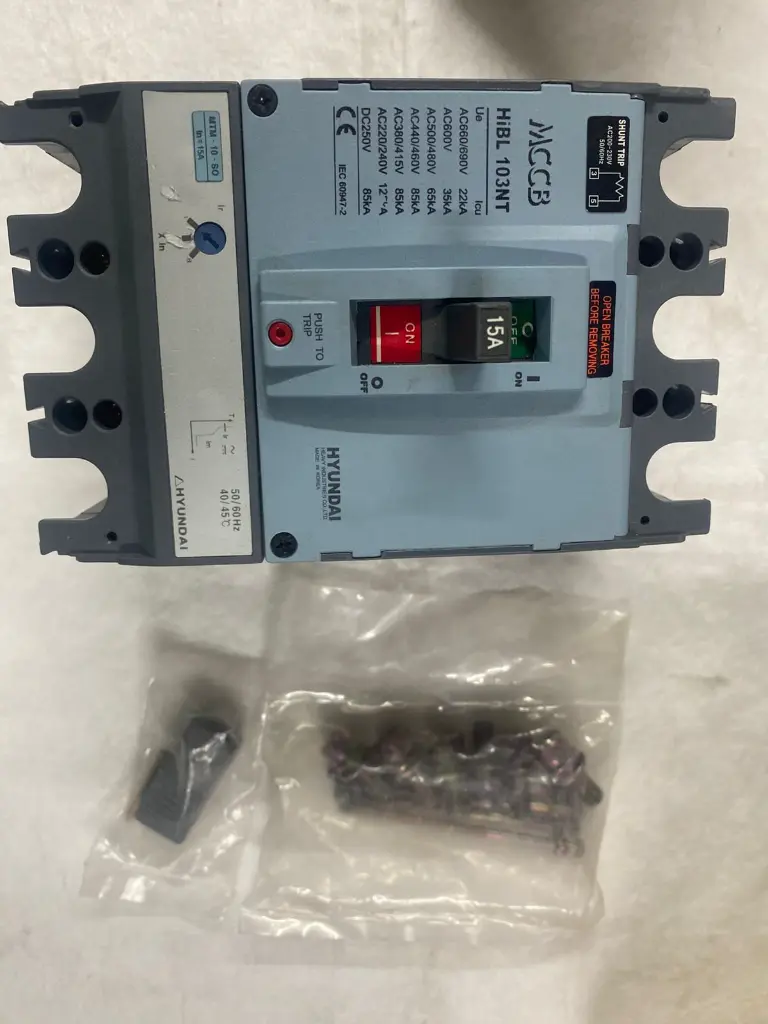

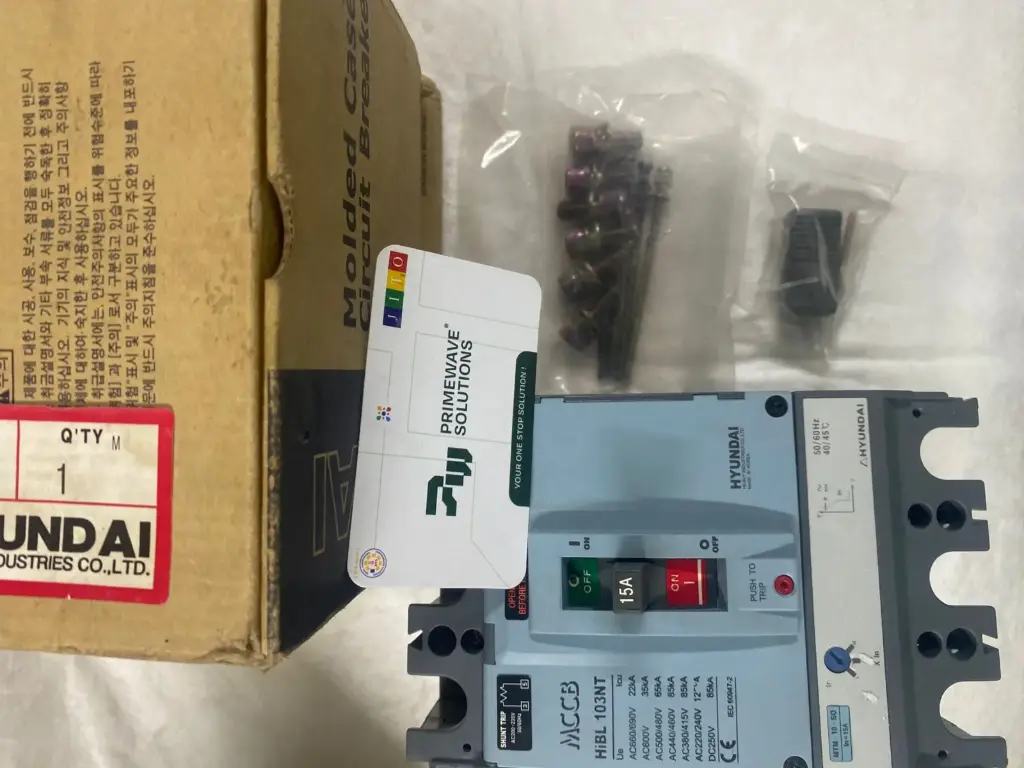

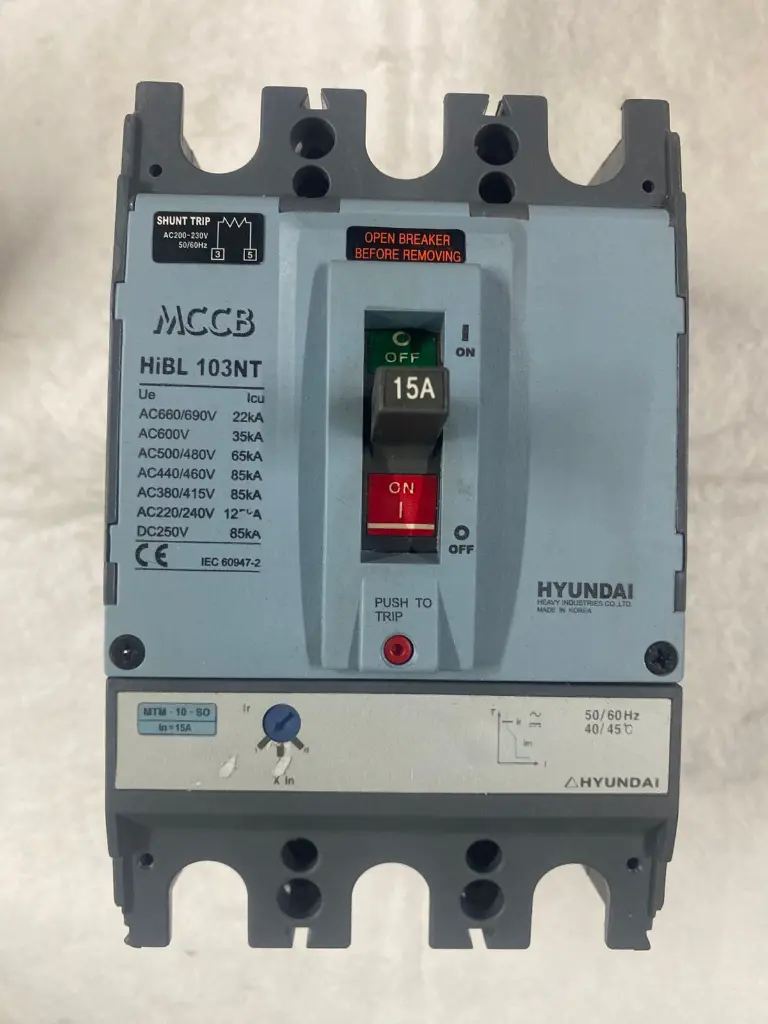

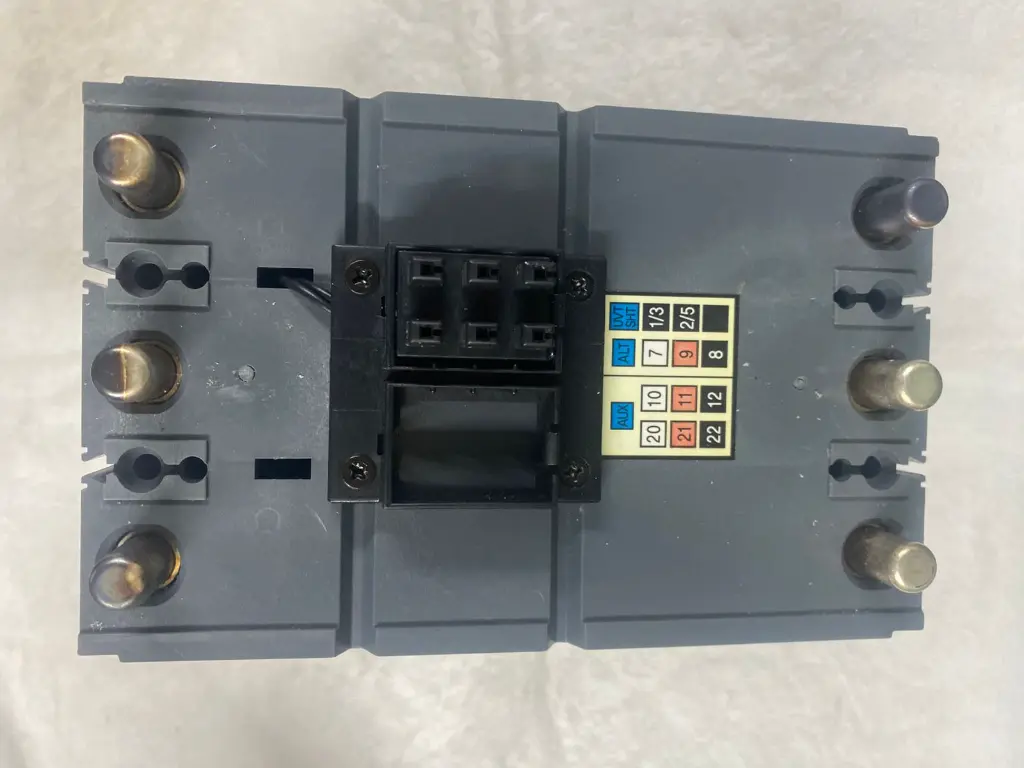

New Hyundai HiBL 103NT Molded Case Circuit Breaker(15A)
| Attribute | Details |

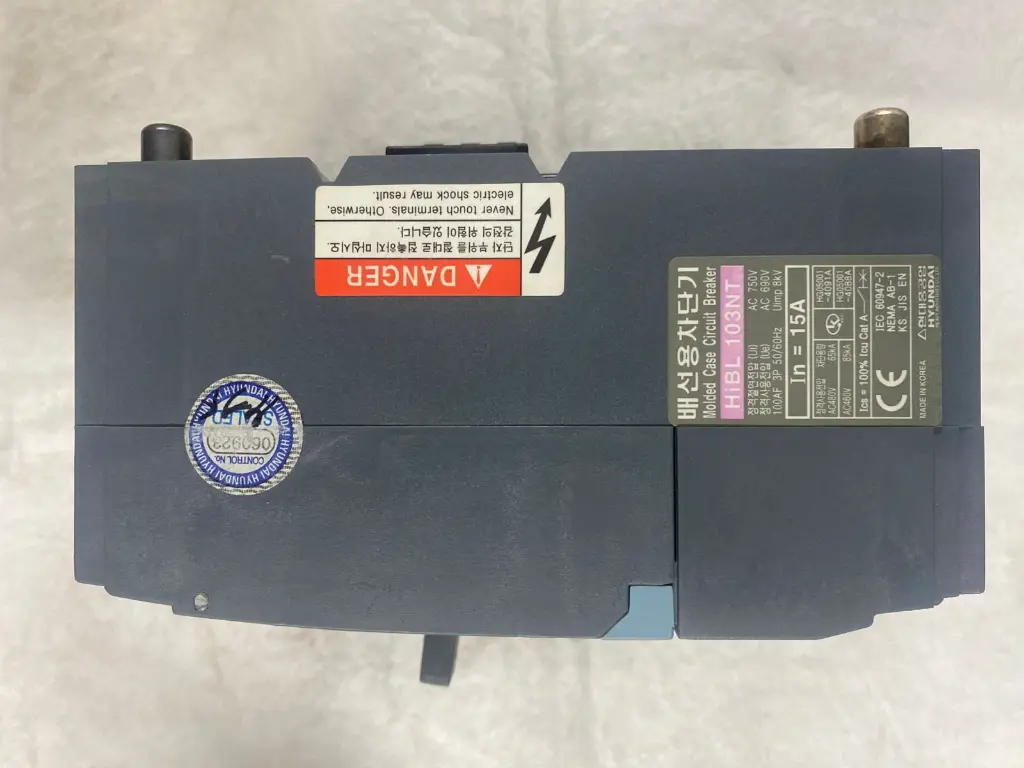

| Product | Hyundai HiBL 103NT Molded Case Circuit Breaker 15A 3 Pole with Shunt Trip |
| Brand | Hyundai Heavy Industries Co., Ltd |

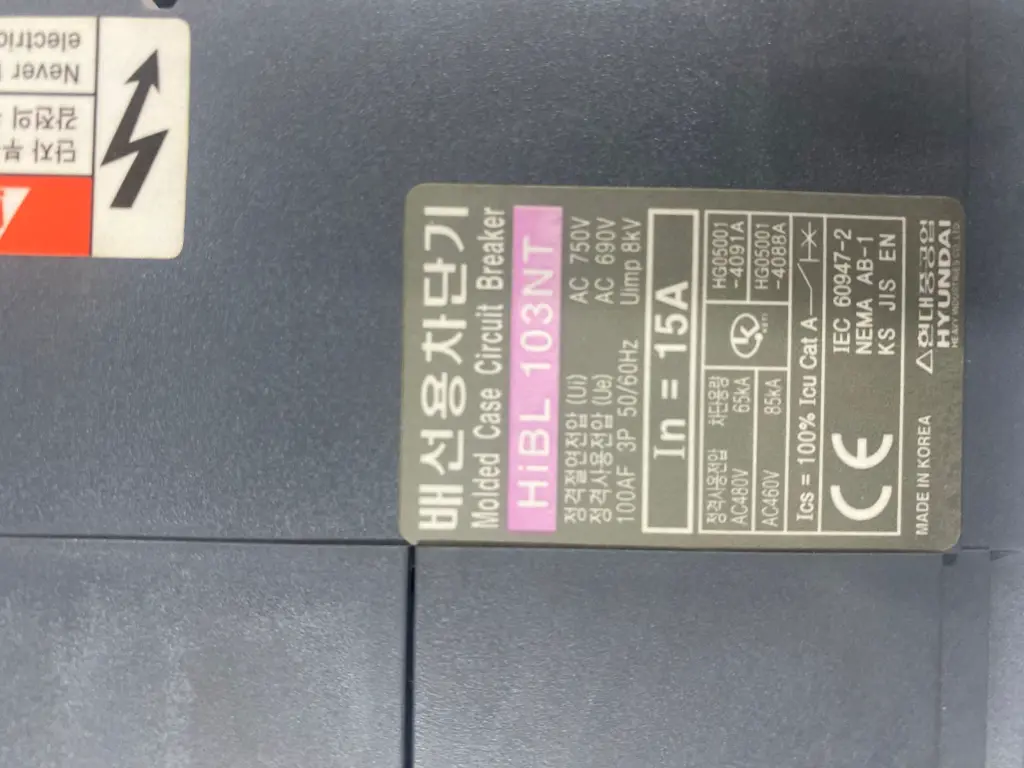

| Model | HiBL 103NT |
| Product Type | MCCB – Molded Case Circuit Breaker |
| Rated Current (In) | 15A |
| Poles | 3 Pole (3P) |

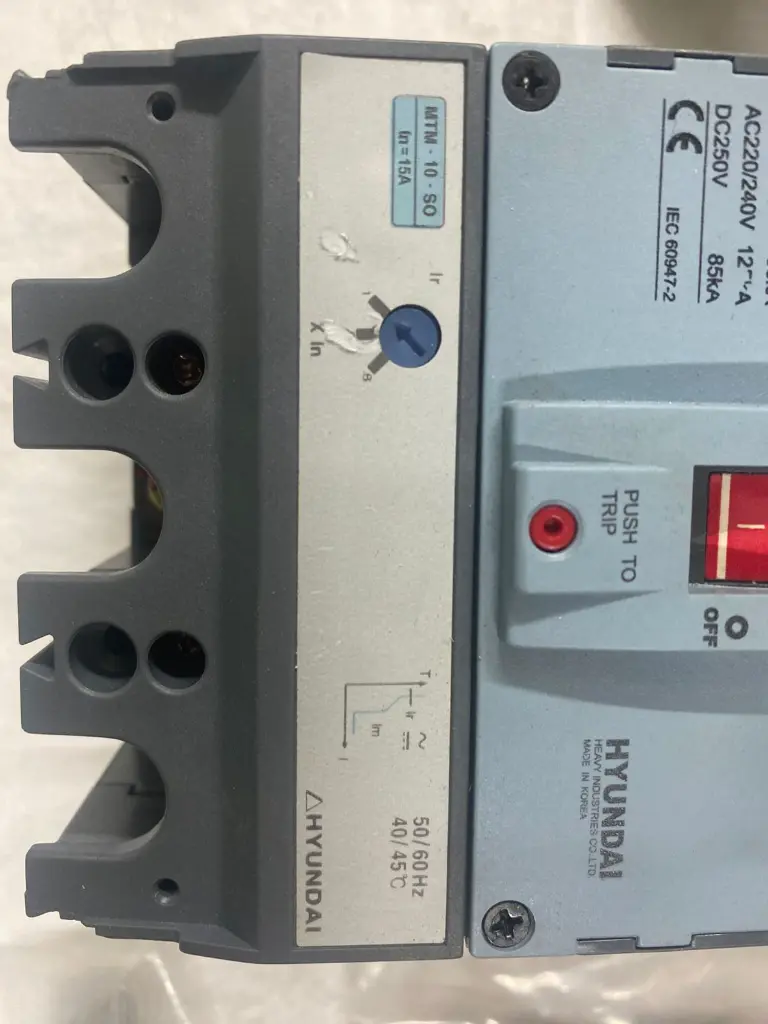

| Trip Unit | MTM-10-SO – Electronic / Thermal Magnetic Trip Unit |
| Overload Setting (Ir) | Adjustable – 0.7 to 1 x In (10.5A – 15A) |

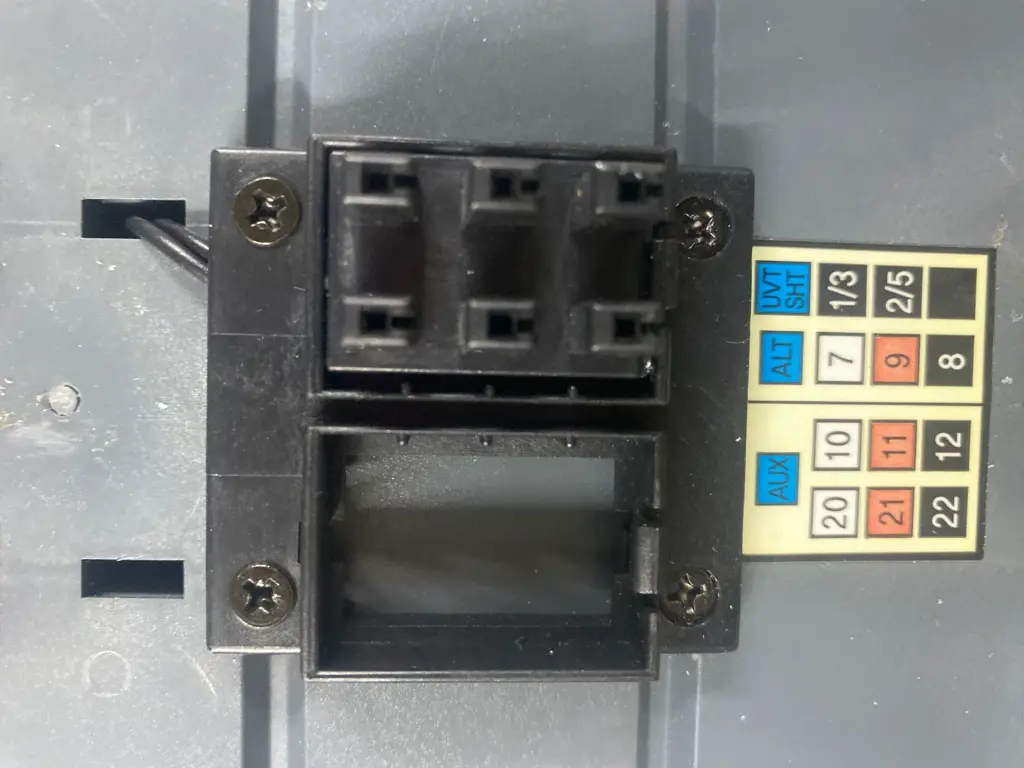

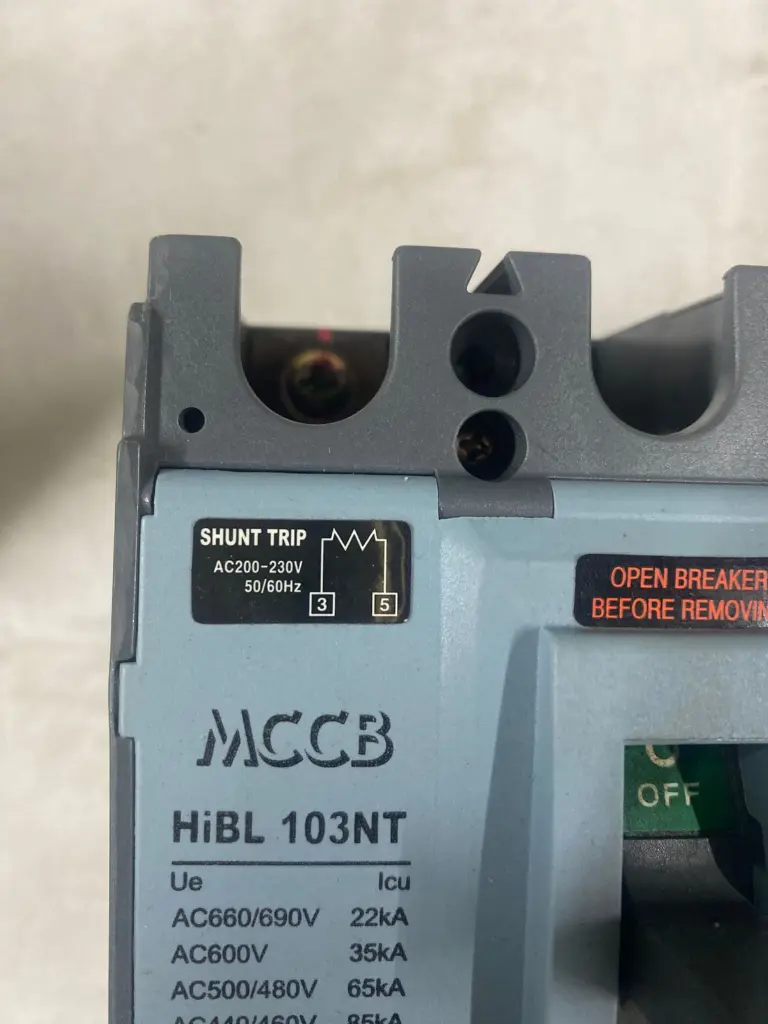

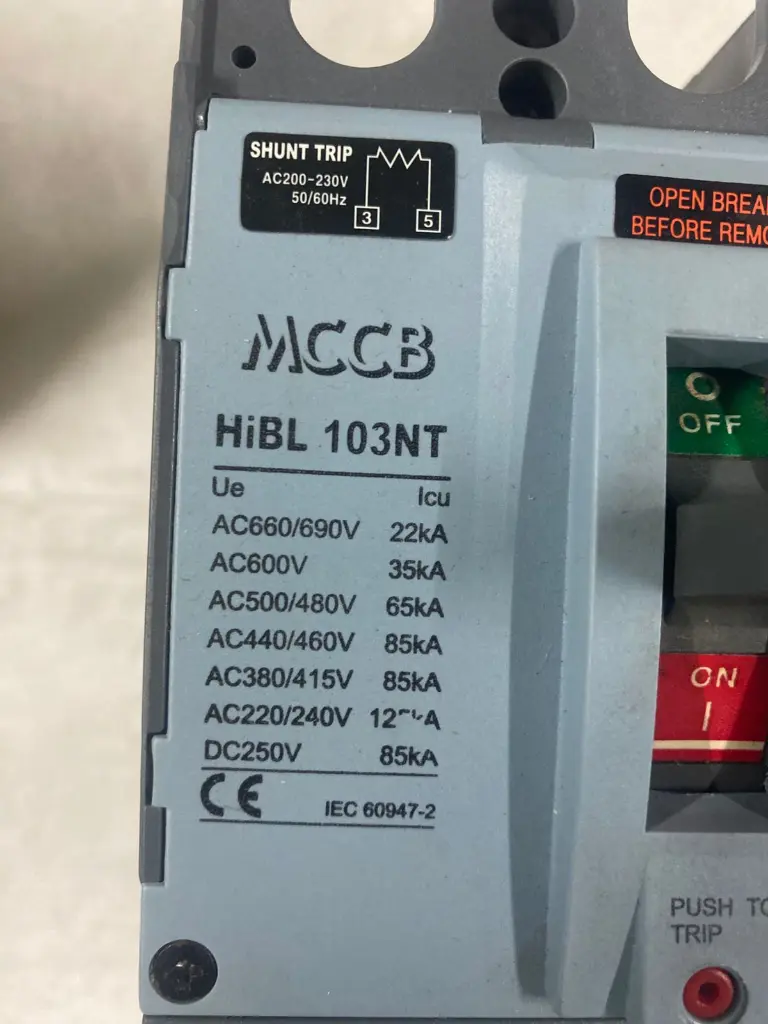

| Shunt Trip | Yes – AC 200–230V / 50–60 Hz (terminals 3 & 5) |
| Push to Trip | Yes – Manual test trip button |
| Breaking Capacity at AC 660/690V | 22 kA (Icu) |
| Breaking Capacity at AC 600V | 35 kA (Icu) |
| Breaking Capacity at AC 500/480V | 65 kA (Icu) |
| Breaking Capacity at AC 440/460V | 85 kA (Icu) |
| Breaking Capacity at AC 380/415V | 85 kA (Icu) |
| Breaking Capacity at AC 220/240V | 120 kA (Icu) |
| Breaking Capacity at DC 250V | 85 kA (Icu) |
| Rated Voltage (Ue) | Up to AC 690V / DC 250V |
| Rated Frequency | 50 / 60 Hz |
| Operating Temperature | 40°C / 45°C (as per derating chart) |
| Mounting Type | Fixed – Panel / DIN Rail Mount |

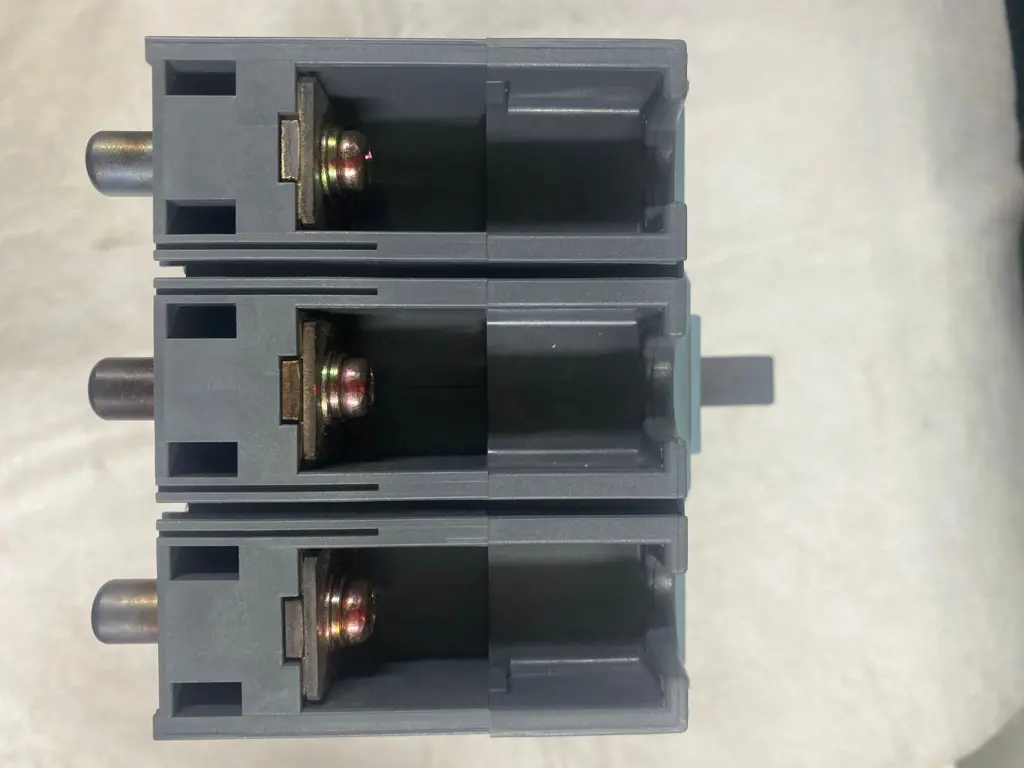

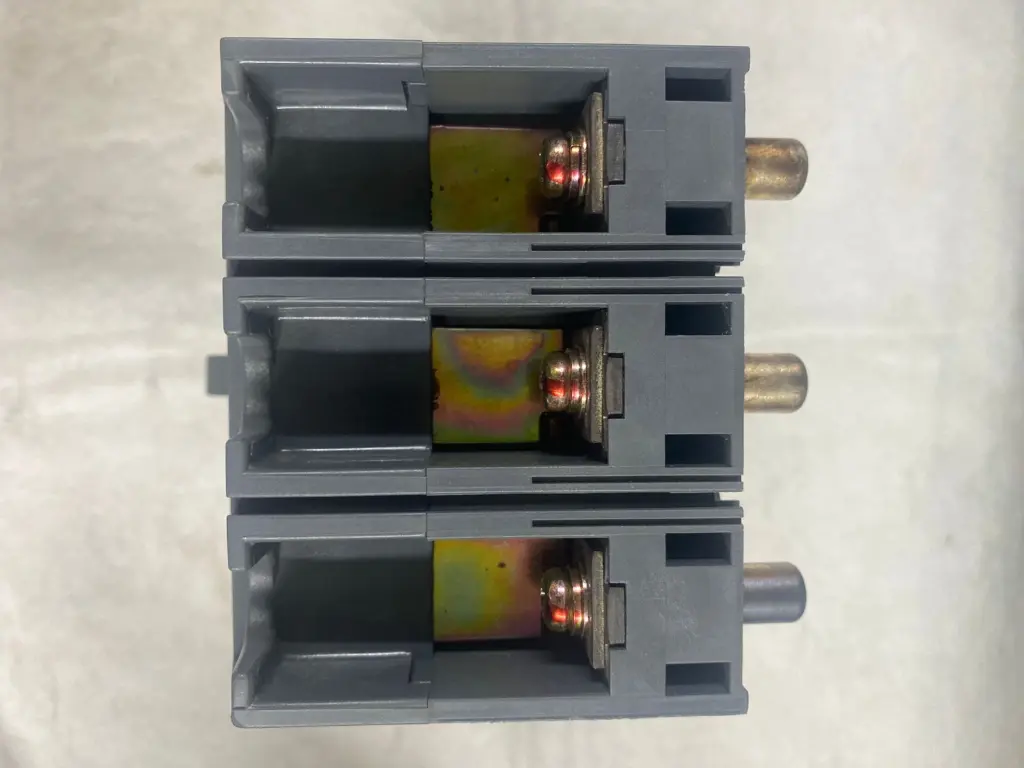

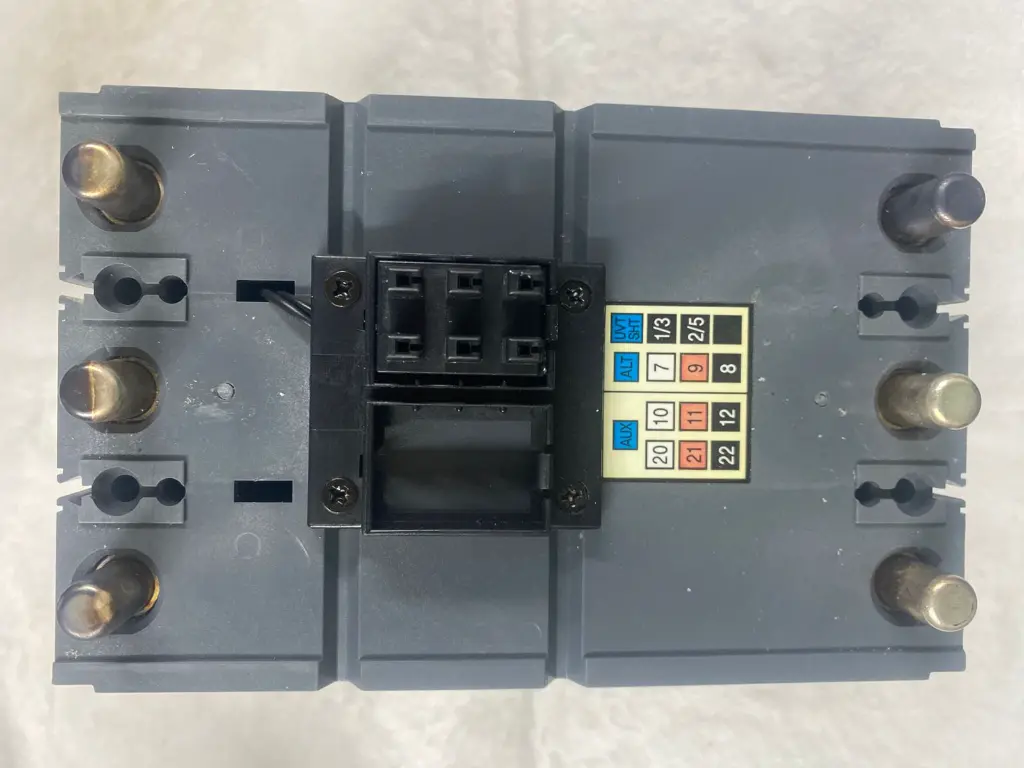

| Terminal Type | Box lug / busbar type terminals (top & bottom) |
| Housing Material | Glass-reinforced thermoplastic – Grey |
| Standards Compliance | IEC 60947-2, CE Marked |
| Box Reference | H917 – No. 21 |
| Manufacturer | Hyundai Heavy Industries Co., Ltd, South Korea |
| Country of Origin | South Korea |
| Application | Motor Protection, Feeder Protection, Short Circuit & Overload Protection in LV Switchgear Panels |
| Suitable For | Marine Vessels, Power Plants, Industrial Plants, Commercial Buildings, Oil & Gas, Shipbuilding |

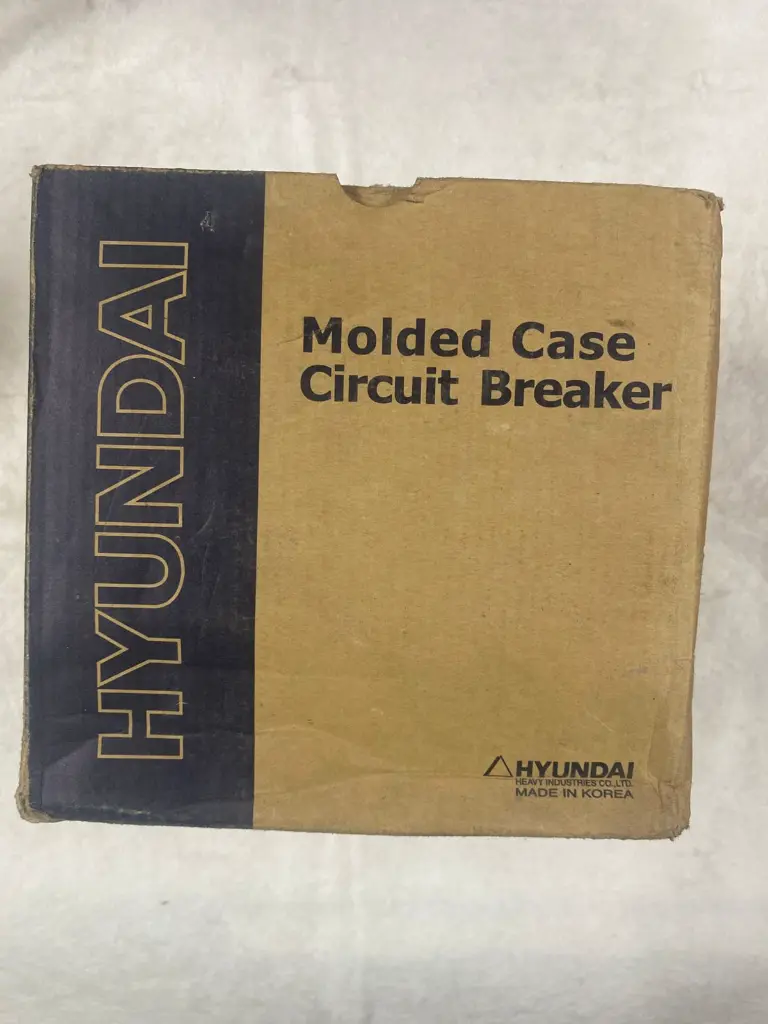

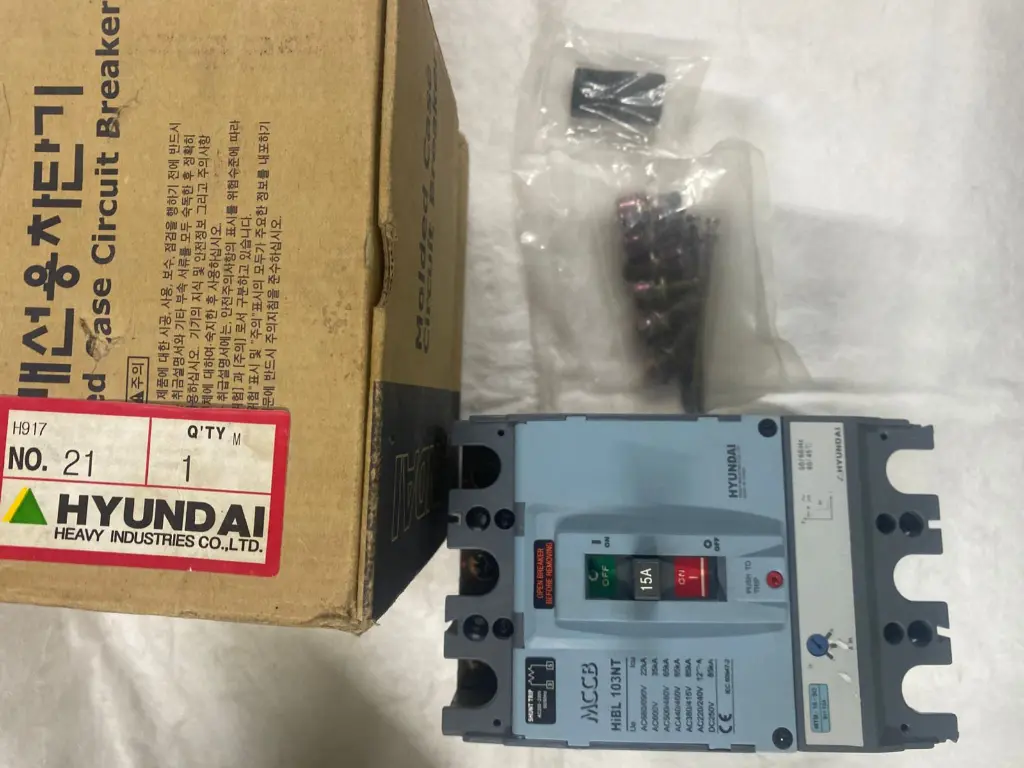

| Condition | New – Open Box |
| Availability | In Stock |
Just drop us a message and we will get back to you as soon as possible.
Available for sale.
Ready Stock
Price: On Request
Worldwide Shipping
Testing video will be share before dispatch
