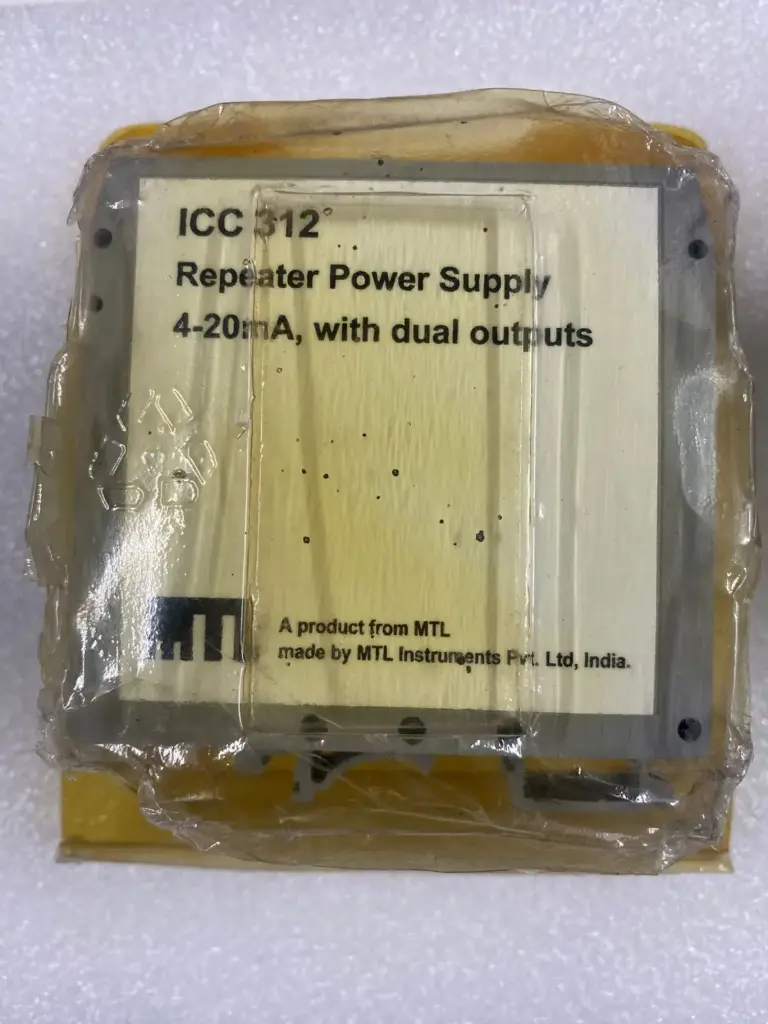

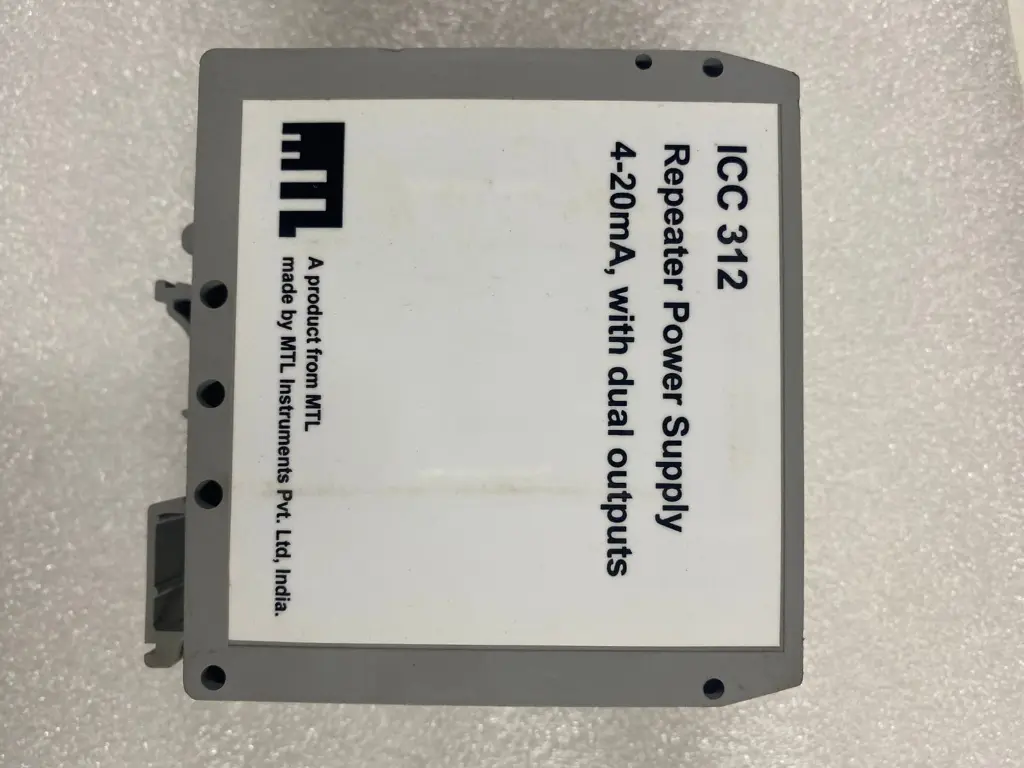

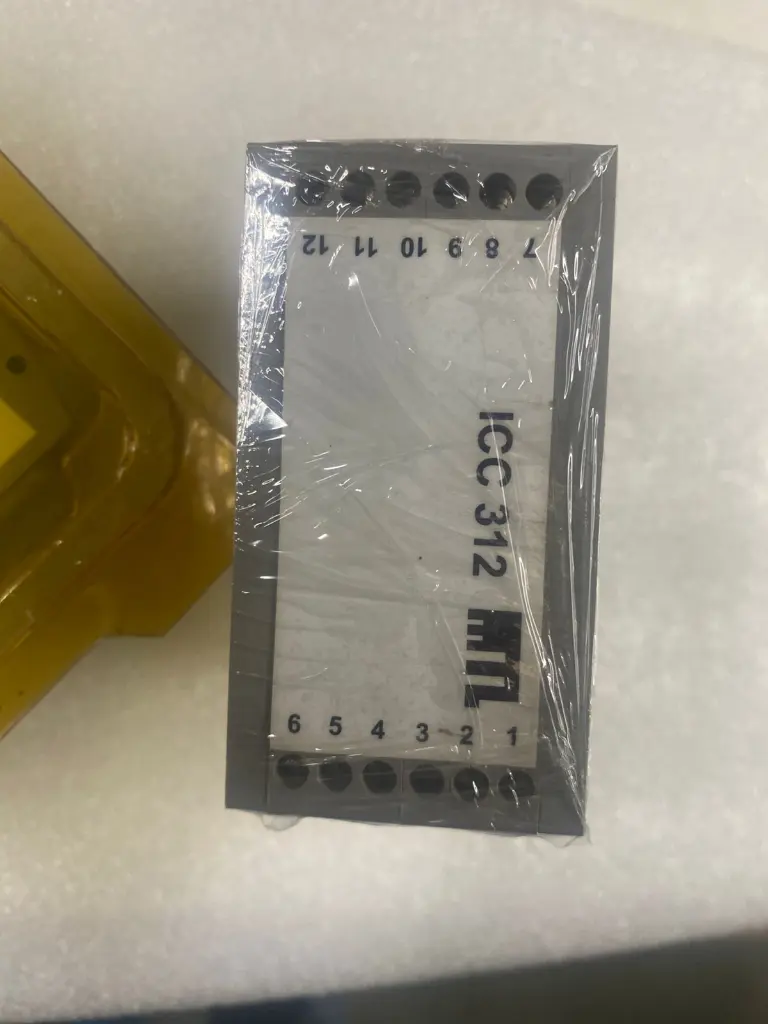

New MTL ICC 312 Repeater Power Supply 4-20mA, With Dual Output Isolator
| Attribute | Details |
| Product | MTL ICC 312 Repeater Power Supply with Dual Output Isolator |
| Brand | MTL Instruments Pvt. Ltd. (MTL Instruments Group) |
| Model | ICC 312 |
| Product Type | Repeater Power Supply / Dual Channel 4–20 mA Signal Isolator |
| Series | ICC Series |
| Function | Powers and isolates 4–20 mA field instruments in hazardous areas; repeats and distributes the 4–20 mA signal to two independent load outputs simultaneously, providing galvanic isolation between field and control room circuits |
| Number of Channels | Dual Channel (2 independent isolated outputs) |
| Input Signal | 4–20 mA (Current Source / 2-wire transmitter loop) |
| Output Signal | Dual 4–20 mA Isolated Outputs (Channels 1 & 2) |
| Power Supply Voltage | 20V to 35V DC |
| Transmitter Supply | 24V DC loop power to field transmitter |
| Load Resistance | Up to 2K Ω per output channel |
| Signal Accuracy | ±0.1% of full scale (typical) |
| Isolation | Galvanic isolation – Field / Output / Power supply |
| LFD Function | Line Fault Detection (LFD) on both channels – detects open / short circuit faults |

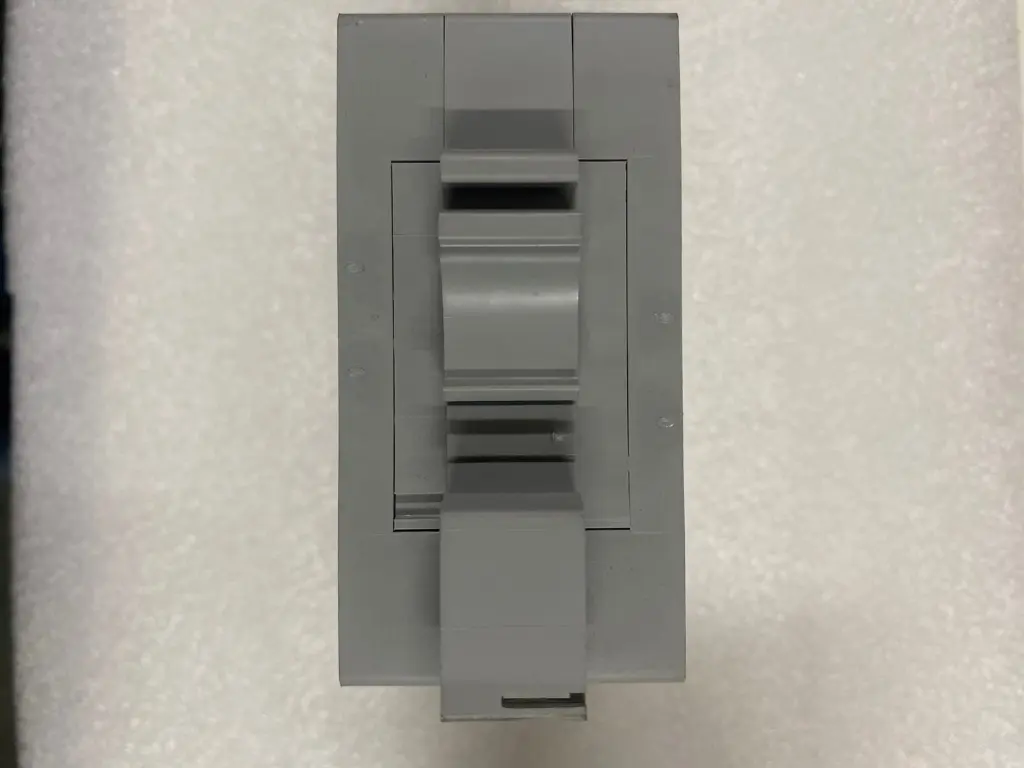

| Mounting Type | DIN Rail Mount (35mm standard DIN rail) |
| Housing Material | Flame-retardant Thermoplastic Grey Enclosure |

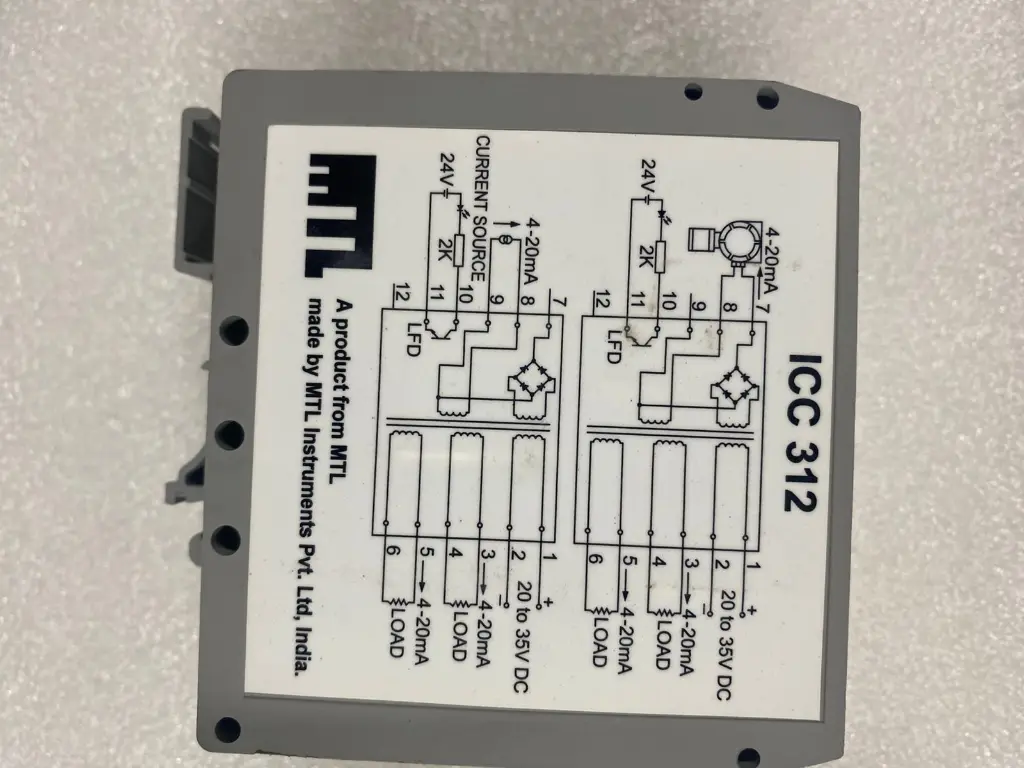

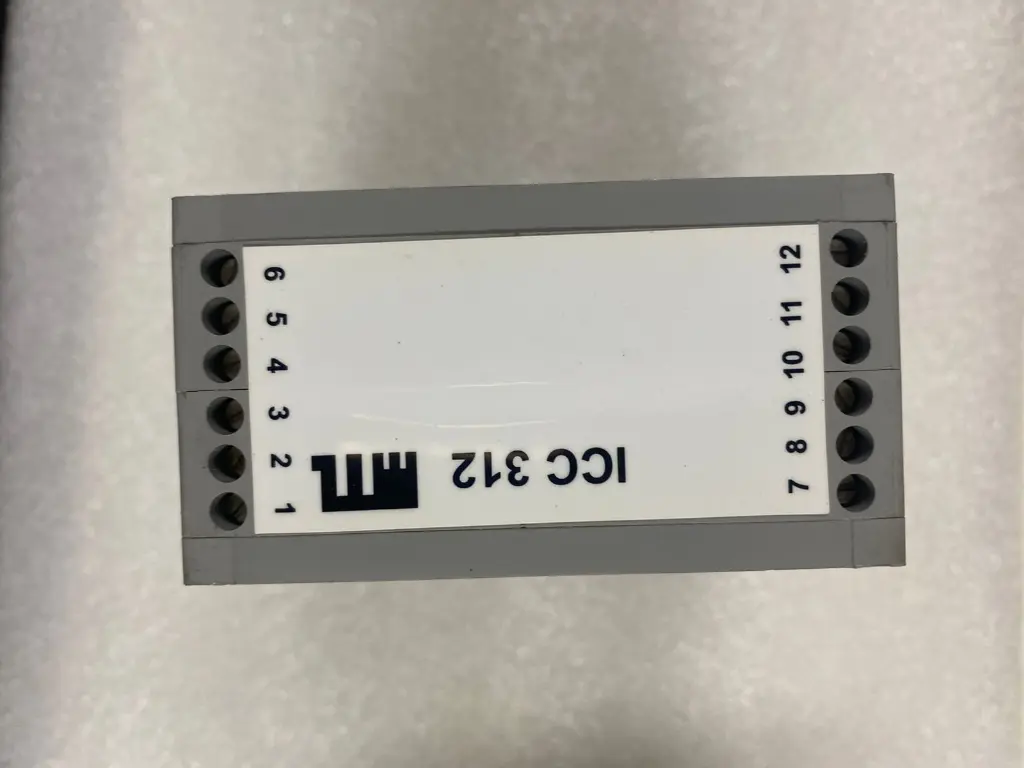

| Terminal Type | Screw terminal – field and load side (12 terminals per channel) |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +60°C |
| Humidity Resistance | Up to 95% Non-Condensing |
| Standards Compliance | IEC 60947, CE Marked |
| Manufacturer | MTL Instruments Pvt. Ltd., India (MTL Instruments Group – Eaton) |
| Country of Origin | India |
| Application | Process Automation, Signal Distribution, PLC / DCS Input Signal Isolation, Hazardous Area Instrumentation |
| Suitable For | Oil & Gas, Chemical Plants, Refineries, Power Plants, Marine, Pharmaceutical Industries |

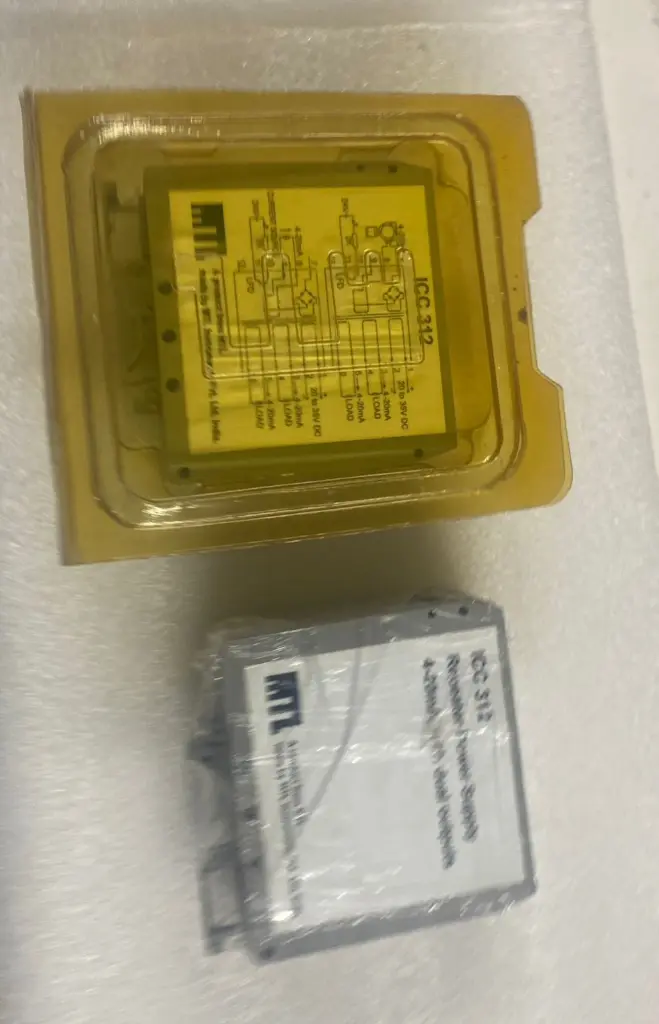

| Condition | New – Open Box |
| Availability | In Stock |
Just drop us a message and we will get back to you as soon as possible.
Available for sale.
Ready Stock
Price: On Request
Worldwide Shipping
Testing video will be share before dispatch
