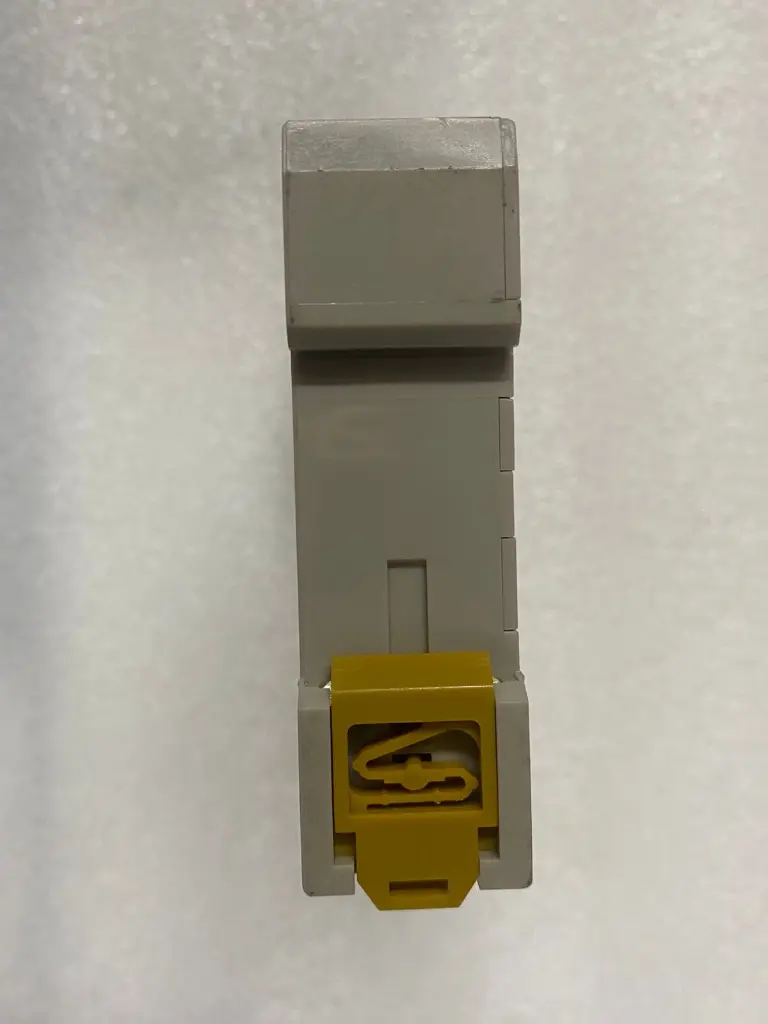

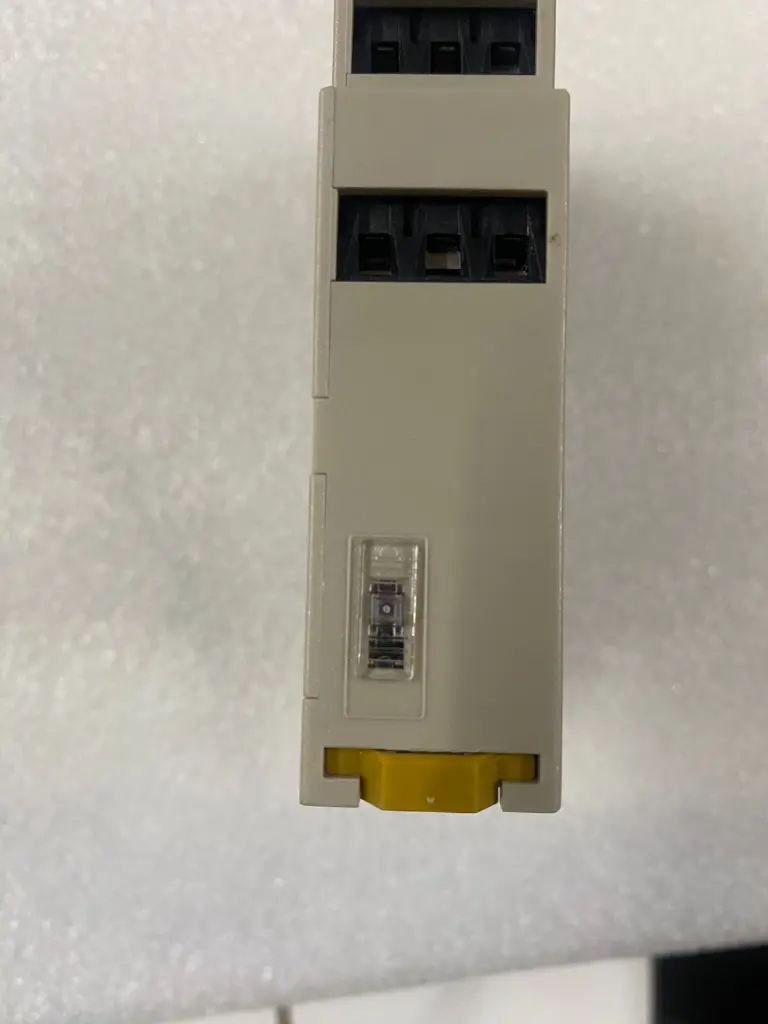

NEW OMRON H3DE-M1 SOLID STATE TIMER
| Attribute | Details |
| Product | Omron H3DE-M1 Solid State Multi-Function Timer |
| Brand | Omron Corporation |
| Model | H3DE-M1 |
| LOT No. | 0596M |
| Product Type | Solid State Multi-Function DIN Rail Timer |
| Series | H3DE Series |
| Function | Provides multi-mode time delay control for industrial automation circuits; supports 7 selectable timing functions (A through G) including ON-delay, OFF-delay, interval, and repeat cycle modes for flexible process sequencing and machine control |
| Timing Range | 0.15 – 120 hours |

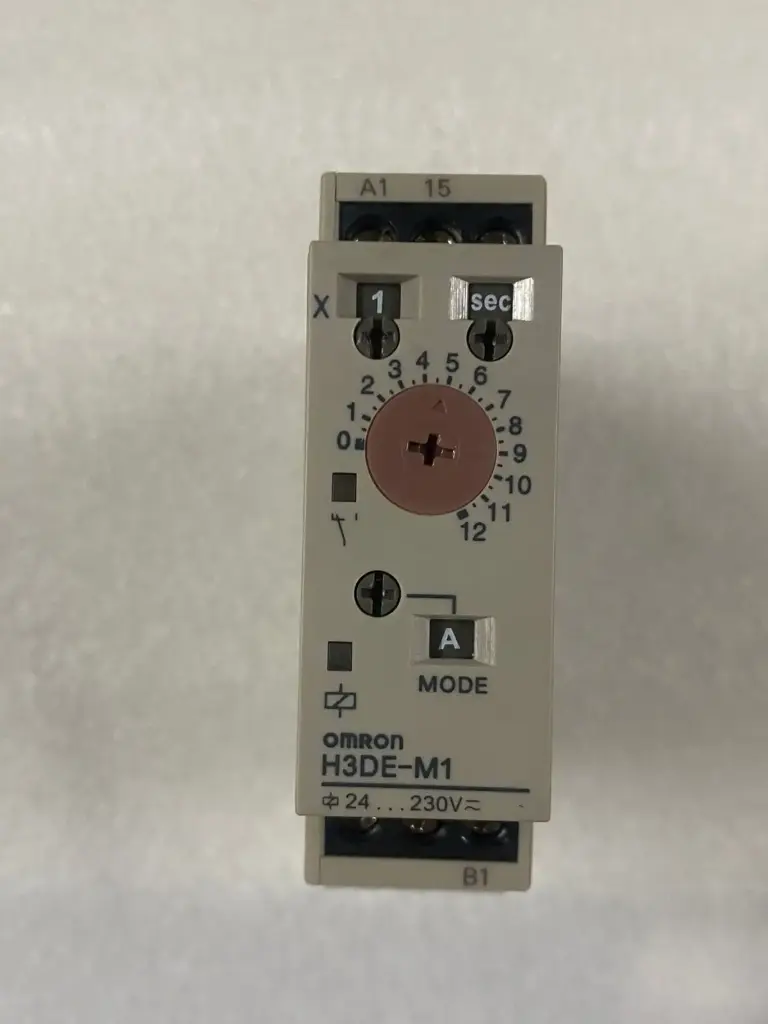

| Number of Timing Modes | 7 modes (A, B, C, D, E, F, G – selectable via front rotary switch) |
| Control Supply Voltage | 24 – 230V AC/DC = 50/60 Hz |
| Rated Supply Voltage | 24 – 230V AC/DC ≈ 50/60 Hz |
| Output Voltage (Un) | 250V AC ~ / 30V DC = |

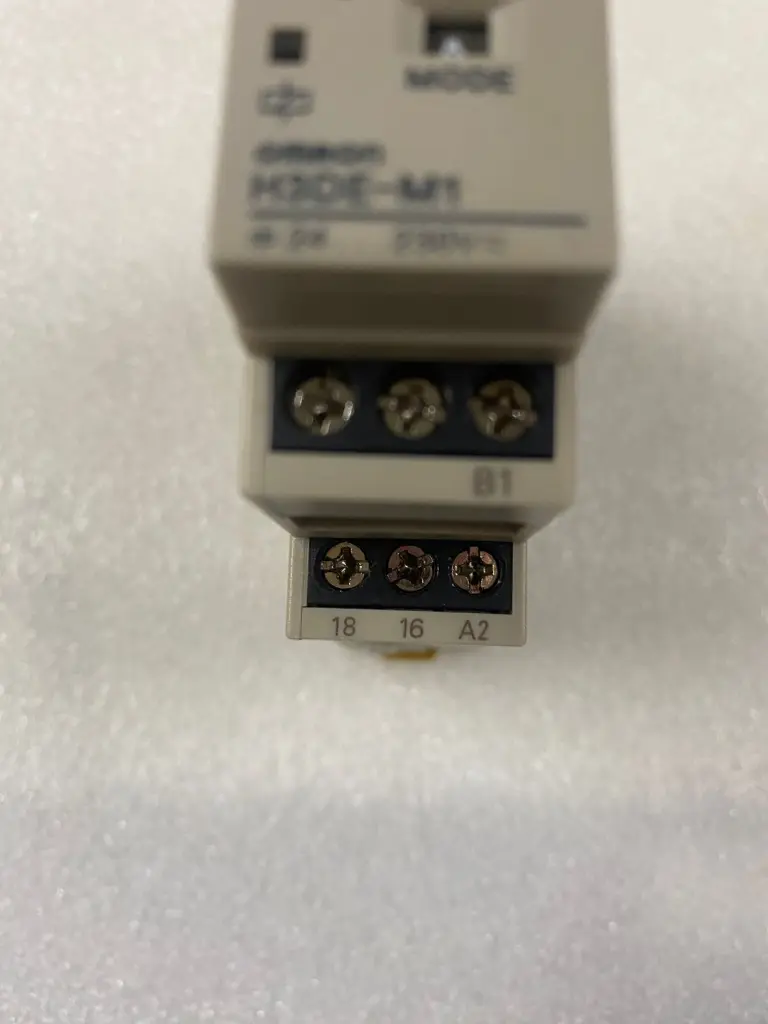

| Output Contacts | SPDT (15/18 – NO/NC) – terminals A1/B1 |
| Rated Thermal Current (Ith) | 5A |
| Contact Rating | 3A at 250V AC / 0.1A at 30V DC |
| Standards Compliance | EN 61812-1 (VDE0435/2021), IEC60664-1 (VDE0110) 4kV/2, IEC60947-5-1 AC-15 |
| Certification | CE Marked, UL Recognized, cUL |
| Insulation Voltage | 4kV / Category 2 |

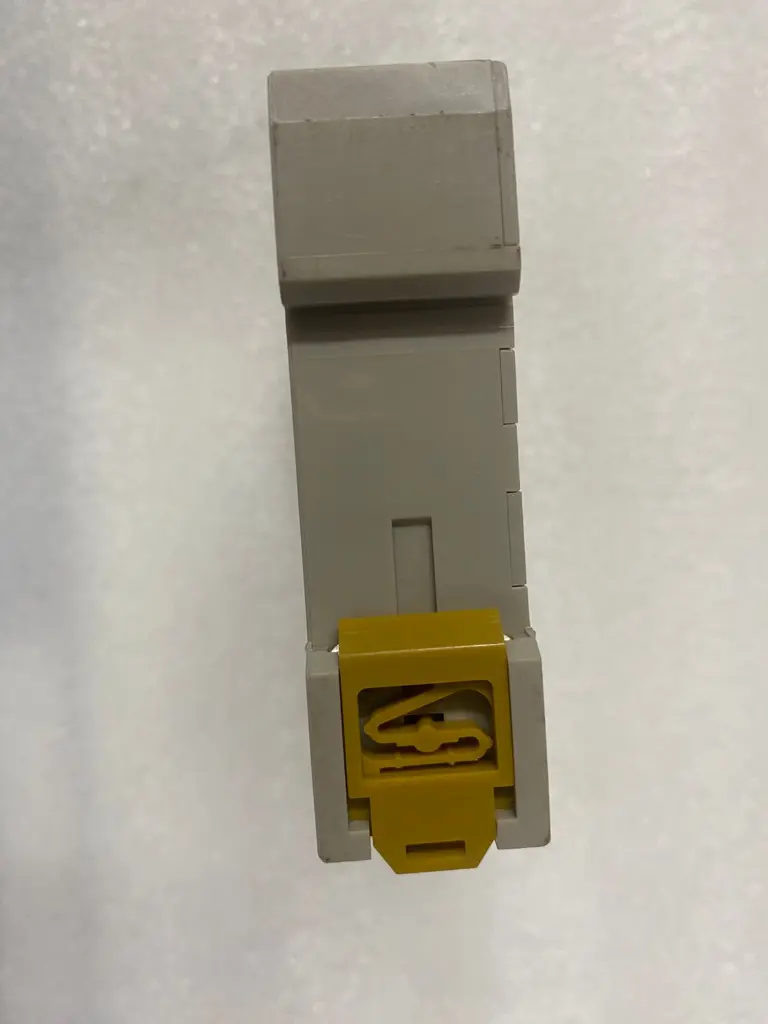

| Mounting Type | DIN Rail Mount (35mm standard DIN rail) |
| Housing Material | Flame-retardant thermoplastic – Grey |

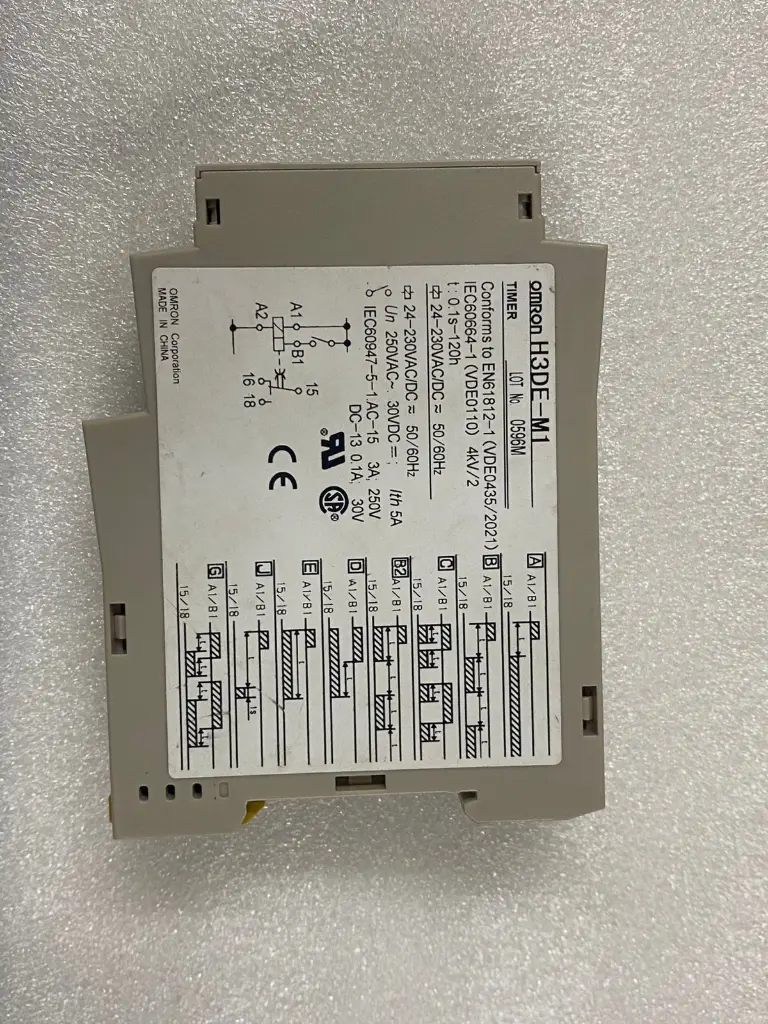

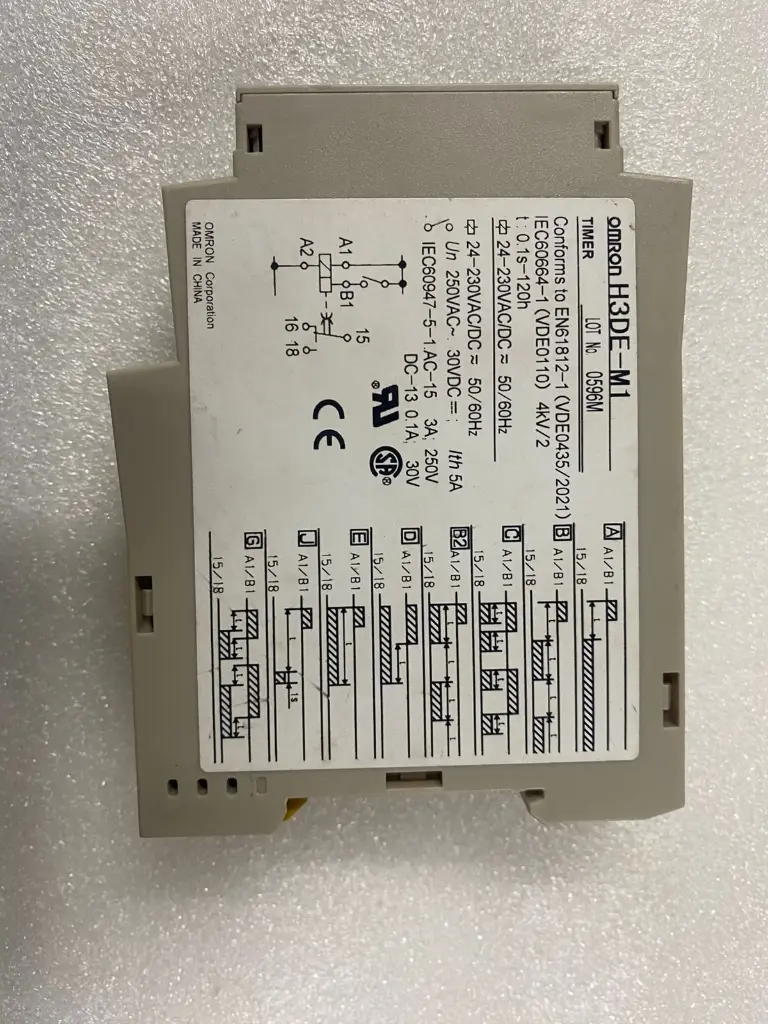

| Wiring Diagram | 7 function diagrams printed on front label (A–G modes) |
| Operating Temperature | -10°C to +55°C |
| Humidity Resistance | Up to 90% Non-Condensing |
| Country of Origin | China (Omron Corporation) |
| Application | Industrial Timer Control, Process Sequencing, Motor Start/Stop Timing, Alarm Delay, Machine Automation |
| Suitable For | Manufacturing Plants, Power Plants, Marine Automation, HVAC, Building Automation, Chemical Plants |
| Manufacturer | Omron Corporation, Kyoto, Japan |
| Condition | New – Open Box |
| Availability | In Stock |
Just drop us a message and we will get back to you as soon as possible.
Available for sale.
Ready Stock
Price: On Request
Worldwide Shipping
Testing video will be share before dispatch
