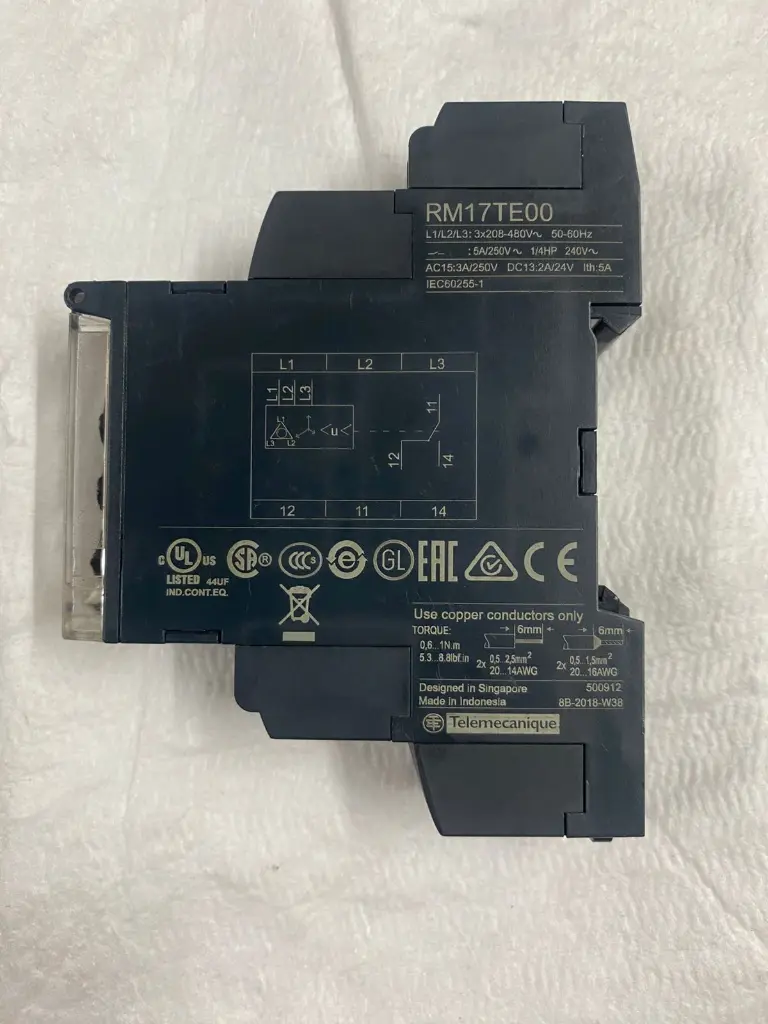

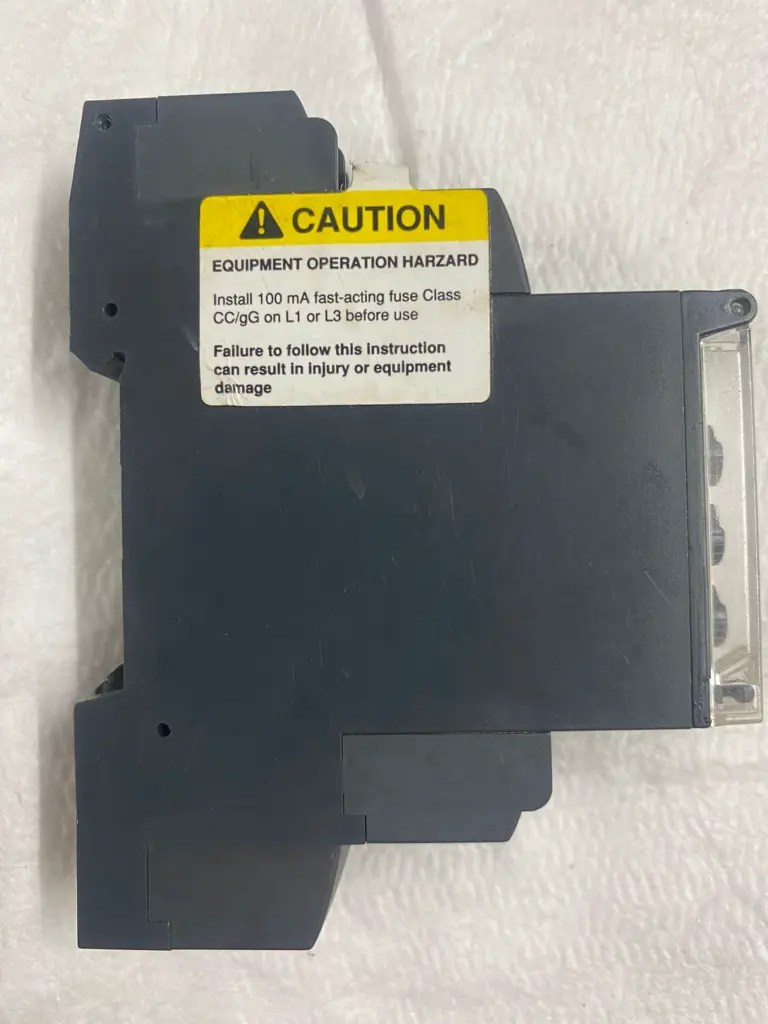

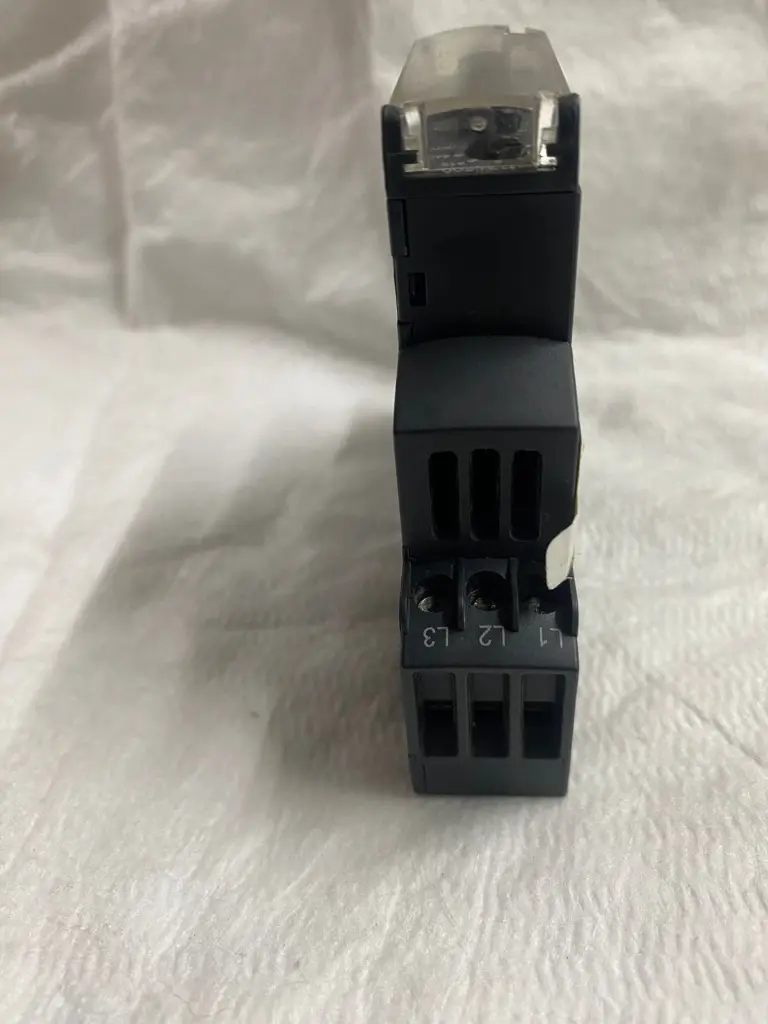

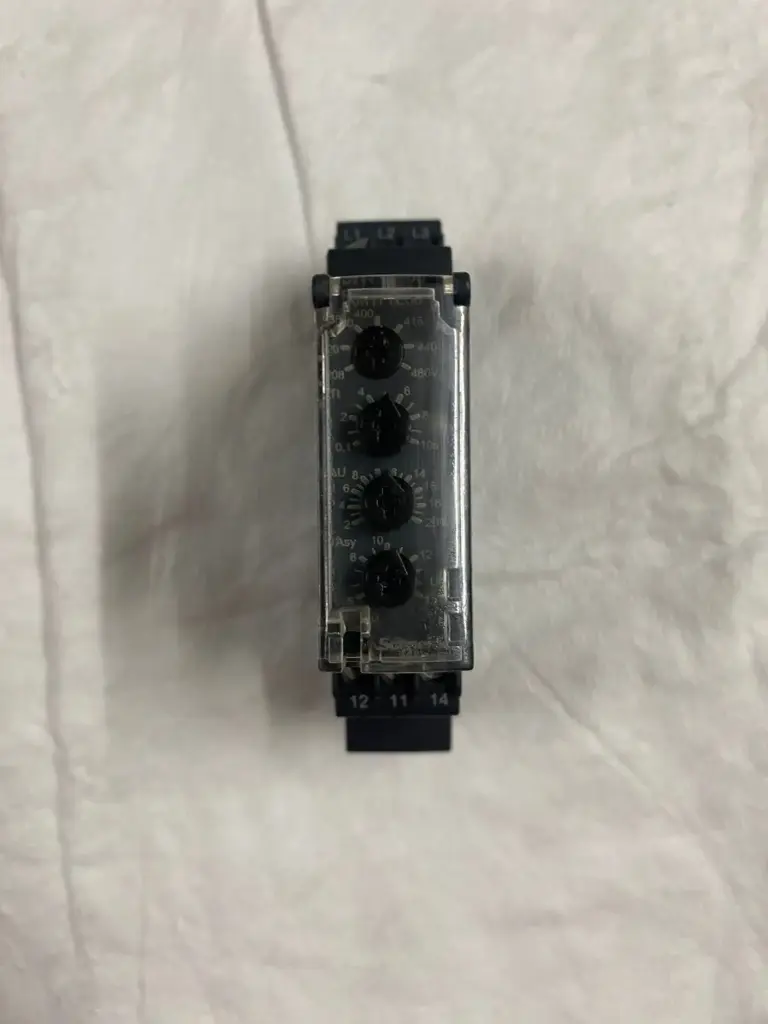

New Schneider Electric RM17TE00 Control Relay 208-480 V
| Parameter | Details |
| Product Name | Control Relay |
| Model / Part Number | RM17TE00 |
| Brand | Schneider Electric / Telemecanique |
| Condition | New – Open Box |
| Voltage Range (L1/L2/L3) | 3 × 208–480 VAC, 50–60 Hz |
| Rated Load | 5 A / 250 V AC |
| Horsepower Rating | 1/4 HP at 240 V AC |
| AC Switching Capacity | AC-15: 3 A / 250 V |
| DC Switching Capacity | DC-13: 2 A / 24 V |
| Standards | IEC 60255-1 |
| Certifications | UL, CSA, CE, GL, EAC, cULus Listed |
| Terminal Torque | 0.6 Nm (5.3 lb-in) |
| Wire Size Support | 0.5–6 mm² (20–14 AWG for single wire), 0.5–2 × 1.5 mm² (20–16 AWG for twin) |
| Mounting Type | DIN Rail |
| Design Origin | Designed in Singapore |
| Country of Manufacture | Made in Indonesia |
Just drop us a message and we will get back to you as soon as possible.
Available for sale.
Ready Stock
Price: On Request
Worldwide Shipping
Testing video will be share before dispatch
