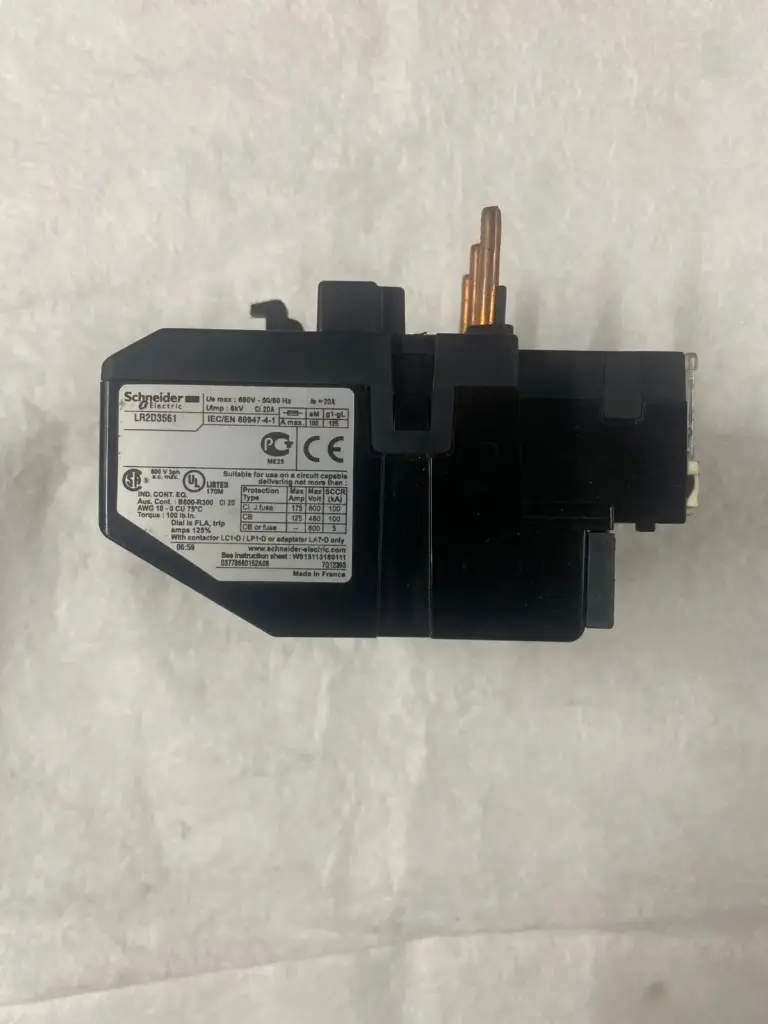

New Schneider LR2D3561 Tesys LRD Thermal Overload Relay
| Parameter | Details |
| Brand / Maker | Schneider Electric |
| Series | TeSys LRD |
| Model / Part No. | LR2D3561 |
| Product Type | Thermal Overload Relay |
| Use Max Voltage | 690 V AC, 50/60 Hz |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Standards | IEC/EN 60947-4-1 |
| Current Range | 48 – 65 A (FLA setting) |
| Trip Setting | Dial is FLA, trips at 125% of dial amps |
| Auxiliary Contact | B600-R300, Class 20 |
| Torque Requirement | 100 lb.in |
| Short Circuit Protection | Fuse or circuit breaker |
| Max SCCR | 100 kA (with proper protection) |
| Protection Type | Class J Fuse / CB or Fuse |
| Fuse Ratings | J Fuse: 175 A max, CB or fuse: 125 A max |
| Mounting | With Contactor LC1-D / LP1-D or Adapter LA7-D only |
| Made in | France |
| Condition | New – Open Box |
Just drop us a message and we will get back to you as soon as possible.
Available for sale.
Ready Stock
Price: On Request
Worldwide Shipping
Testing video will be share before dispatch
