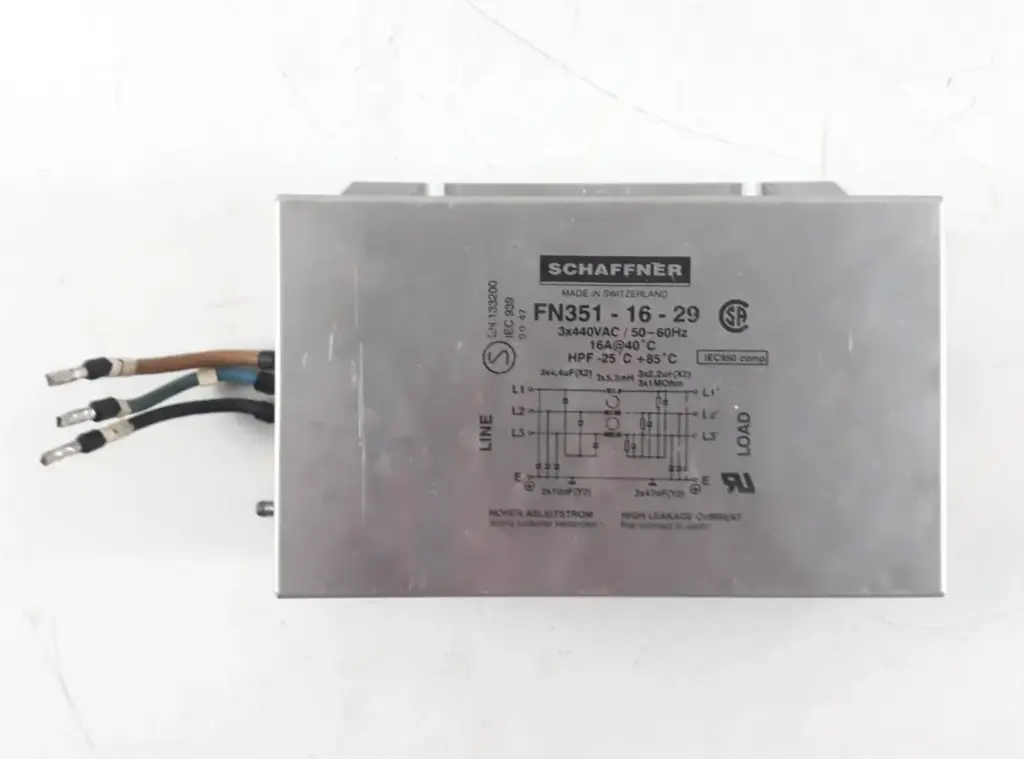

Schaffner FN351-16-29 (3x440VAC / 50-60HZ) GENERAL PURPOSE EMC FILTER
| Attribute | Details |
| Product | Schaffner FN351-16-29 Three Phase General Purpose EMC Filter |
| Brand | Schaffner AG |
| Model | FN351-16-29 |
| C/N Reference | 133200 |
| Standard | IEC 939 |
| Product Type | Three Phase EMC / RFI Line Filter |
| Function | Suppresses electromagnetic interference (EMI) and radio frequency interference (RFI) conducted through 3-phase power supply lines; protects sensitive equipment from mains-borne interference and prevents equipment-generated noise from propagating back into the power network |
| Rated Voltage | 3 × 440V AC |
| Rated Frequency | 50 – 60 Hz |
| Rated Current | 16A @ 40°C |
| Temperature Range | HPF -25°C to +85°C |
| Number of Phases | 3 Phase (L1, L2, L3 – Line & Load) |
| X Capacitors | 3 × 4.4 µF (X2) and 3 × 2.2 µF (X2) |
| Y Capacitors | 3 × 10 nF (Y2) and 3 × 47 nF (Y2) |
| Inductance | 3 × 5.2 mH |
| Discharge Resistor | 3 × 1 MΩ |
| Leakage Current | High leakage current – connect to earth first |
| Wiring | Line side: L1, L2, L3 / Load side: L1', L2', L3' – screw / lead wire termination |
| Housing Material | Powder-coated Steel – Aluminium grey finish |
| Mounting Type | Panel / chassis mount with screw fixing |
| Standards Compliance | IEC 939, IEC 950 compatible, CSA Certified, UL Recognized |
| Country of Origin | Switzerland |
| Application | EMC Filtering for 3-Phase Drives, Inverters, VFDs, Industrial Machinery, Power Electronics |
| Suitable For | Variable Frequency Drives (VFD), Servo Drives, CNC Machines, Industrial Control Panels, Marine Equipment |
| Manufacturer | Schaffner AG, Luterbach, Switzerland |
| Condition | Used – Good and Working |
| Availability | In Stock |
Just drop us a message and we will get back to you as soon as possible.
Available for sale.
Ready Stock
Price: On Request
Worldwide Shipping
Testing video will be share before dispatch
