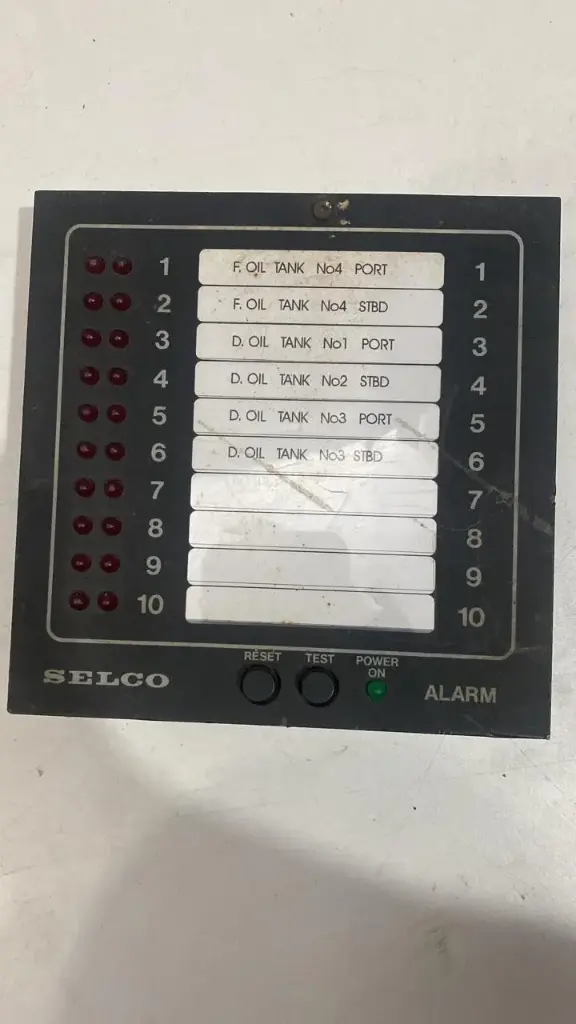

Selco M1000-24-00C Alarm Monitor M10002400C
| Attribute | Details |
| Product | Selco M1000-24-00C Marine Alarm Monitor Panel |
| Brand | Selco A/S |
| Model | M1000-24-00C |
| Part Number | M1000-24-00C |
| Batch / Order Code | 03Q902 |
| Variant Code | B4C1 |
| Product Type | Marine Alarm Monitoring Panel – 10 Channel |
| Series | M1000 Series Marine Alarm Monitor |
| Function | Continuously monitors up to 10 alarm input channels from vessel systems including fuel oil tanks, diesel oil tanks, and other critical machinery; activates individual LED indicators and common alarm output when any channel detects a fault or abnormal condition; provides reset and test functions for system verification |
| Number of Alarm Channels | 10 Channels (OUT1 – OUT10) |
| Pre-configured Alarm Points | F. Oil Tank No4 Port (Ch.1), F. Oil Tank No4 STBD (Ch.2), D. Oil Tank No1 Port (Ch.3), D. Oil Tank No2 STBD (Ch.4), D. Oil Tank No3 Port (Ch.5), D. Oil Tank No3 STBD (Ch.6), Channels 7–10 configurable |
| Alarm Indicators | Dual Red LED per channel (20 LEDs total) – individual channel alarm indication |
| Power Indicator | Green LED – Power ON indicator |
| Controls | RESET button – alarm acknowledge / TEST button – lamp and alarm test |
| Alarm Output | ALARM-OUT relay contact output (common alarm) |
| Sync Output | SYNC-OUT / OUT10 – synchronisation output for cascaded systems |
| Communication | RS232 serial interface |
| Supply Voltage | 12–24V DC |
| Timing Settings | Selectable: 50 mSec / 500 mSec / 2 Sec / 15 Sec delay (DIP switch configurable) |
| Mounting Type | Panel Mount – flush front panel installation |
| Housing Material | Powder-coated steel – Black finish |
| Front Panel | Silk-screened identification labels per channel |
| Protection Rating | IP22 (front panel) |
| Operating Temperature | -10°C to +55°C |
| Humidity Resistance | Up to 95% Non-Condensing |
| Standards Compliance | CE Marked |
| Manufacturer | Selco A/S, Hillerød, Denmark |
| Country of Origin | Denmark |
| Application | Tank Level Alarm Monitoring, Fuel Oil & Diesel Oil Tank Monitoring, Engine Room Alarm Systems, Vessel Safety Monitoring |
| Suitable For | Cargo Ships, Tankers, Offshore Vessels, Ferries, Naval Vessels, Fishing Vessels, Marine Engine Room Alarm Systems |
| Condition | Used – Good and Working |
| Availability | In Stock |
Just drop us a message and we will get back to you as soon as possible.
Available for sale.
Ready Stock
Price: On Request
Worldwide Shipping
Testing video will be share before dispatch
