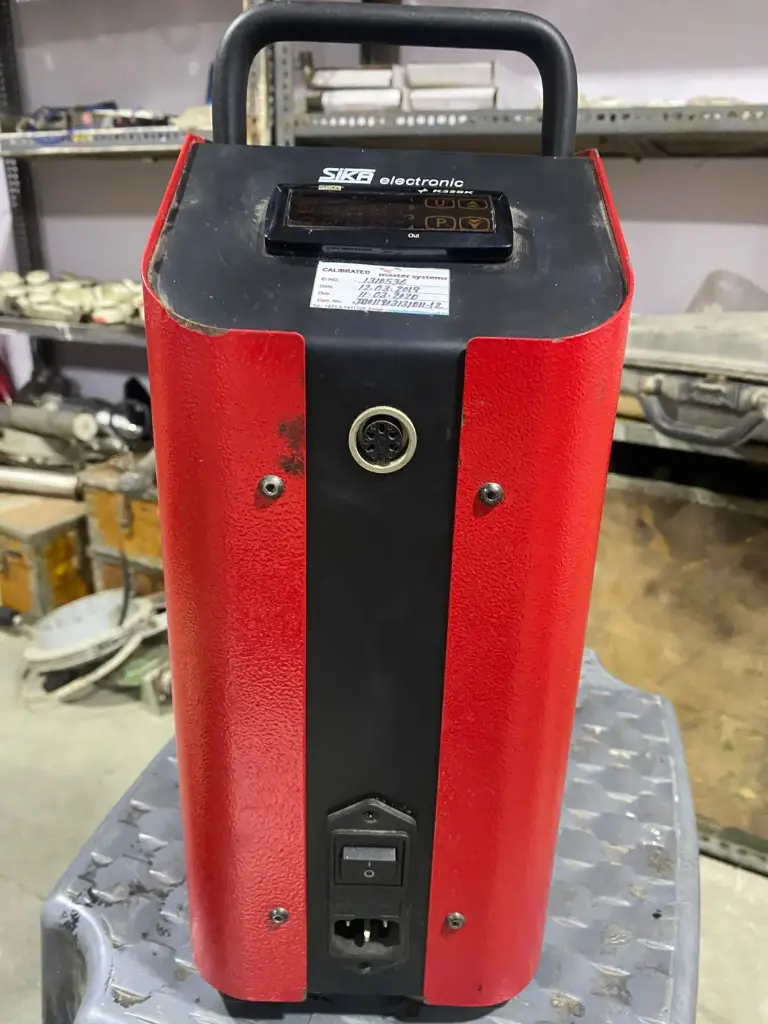

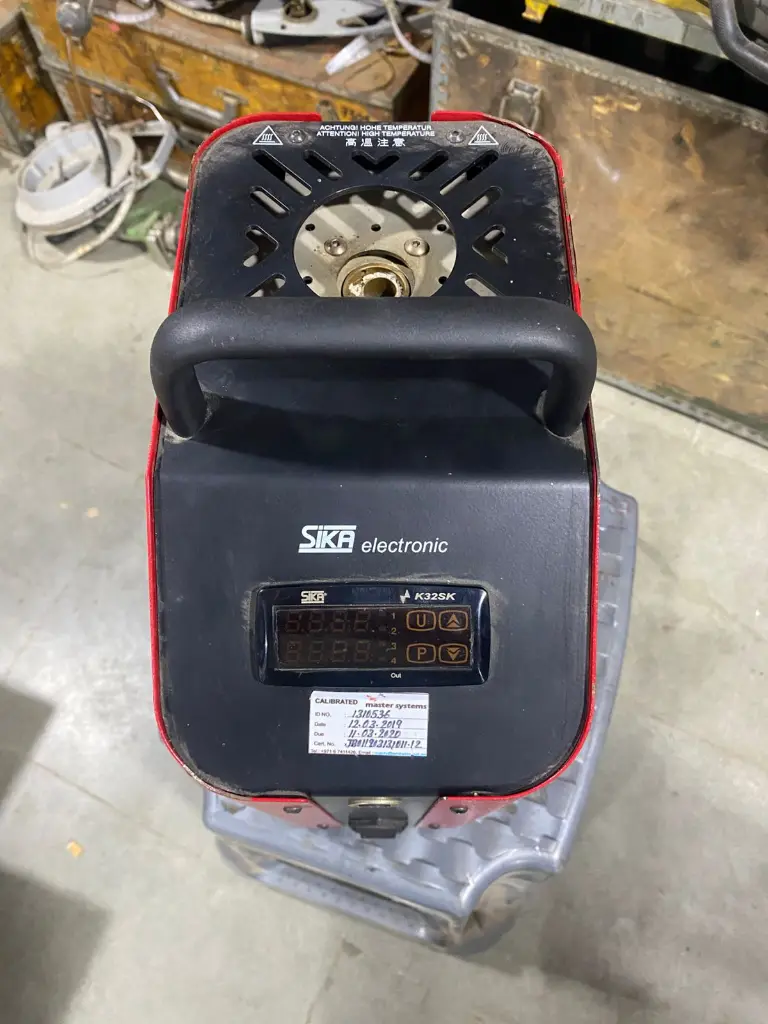

SIKA TP17650M DRY BLOCK TEMPERATURE CALIBRATOR AMBIENT 230/240V 50/60Hz 1000W
| Attribute | Details |
| Product | Sika TP17650M Temperature Dryblock Calibrator |
| Brand | Sika (Dr. Sika GmbH) |

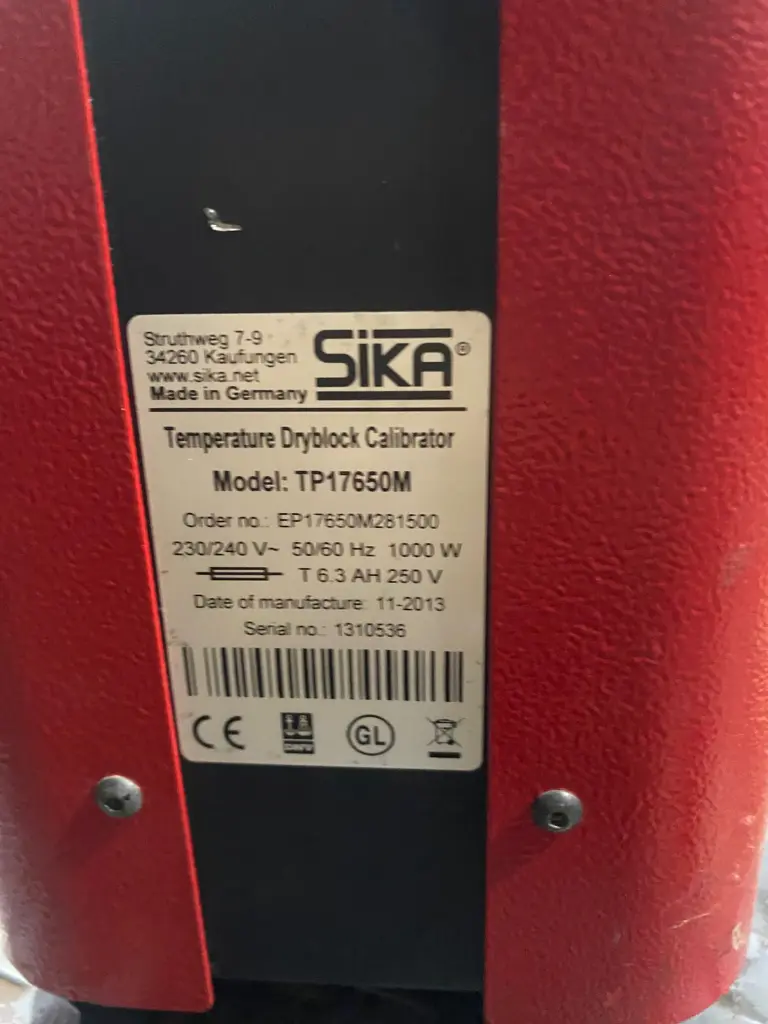

| Model | TP17650M |
| Order Number | EP17650M281500 |
| Serial Number | 1310536 |
| Product Type | Portable Temperature Dry Block Calibrator |
| Series | TP Series Temperature Calibrators |
| Function | Provides precise, stable, and repeatable dry block temperature reference for on-site and laboratory calibration of temperature sensors, thermocouples, RTDs, thermometers, and temperature transmitters |
| Calibration Method | Dry Block (Metal Insert) – no liquid bath required |
| Temperature Range | Ambient to +650°C |
| Temperature Stability | ±0.1°C (typical at stable setpoint) |
| Temperature Accuracy | ±0.5°C (typical) |

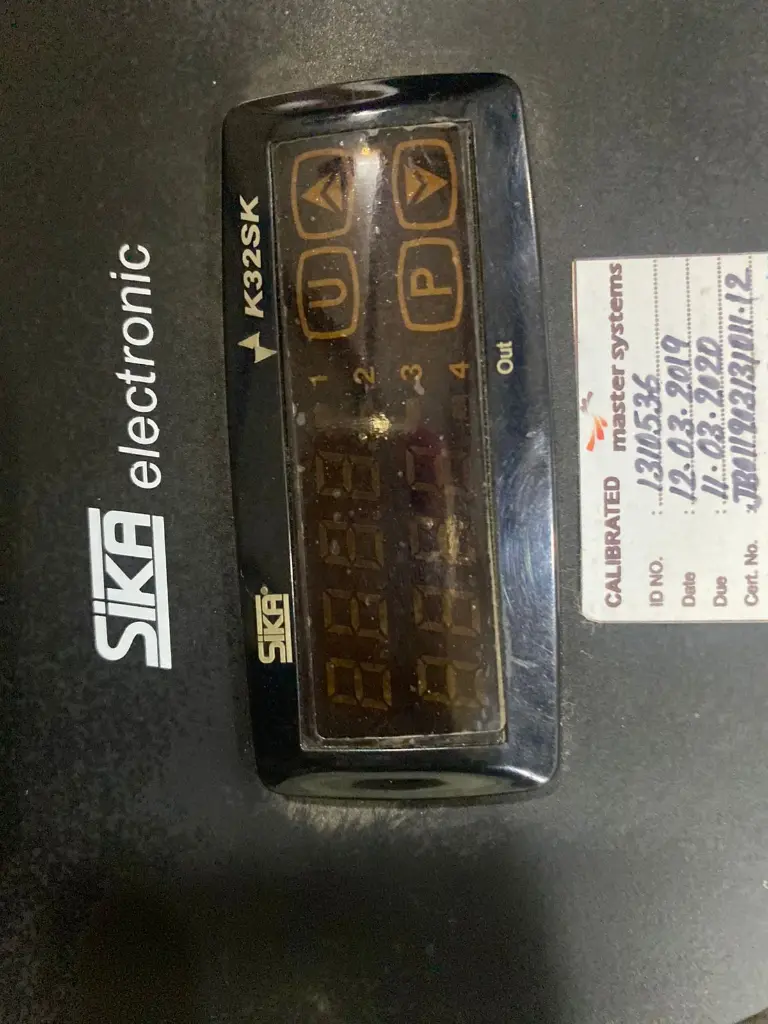

| Display | Digital display – set point and actual temperature readout |
| Heating Power | 1000W |
| Supply Voltage | 230/240V AC – 50/60 Hz |
| Fuse Rating | T 6.3 AH / 250V |
| Warm-Up Time | Approx. 15–20 minutes to reach 650°C |

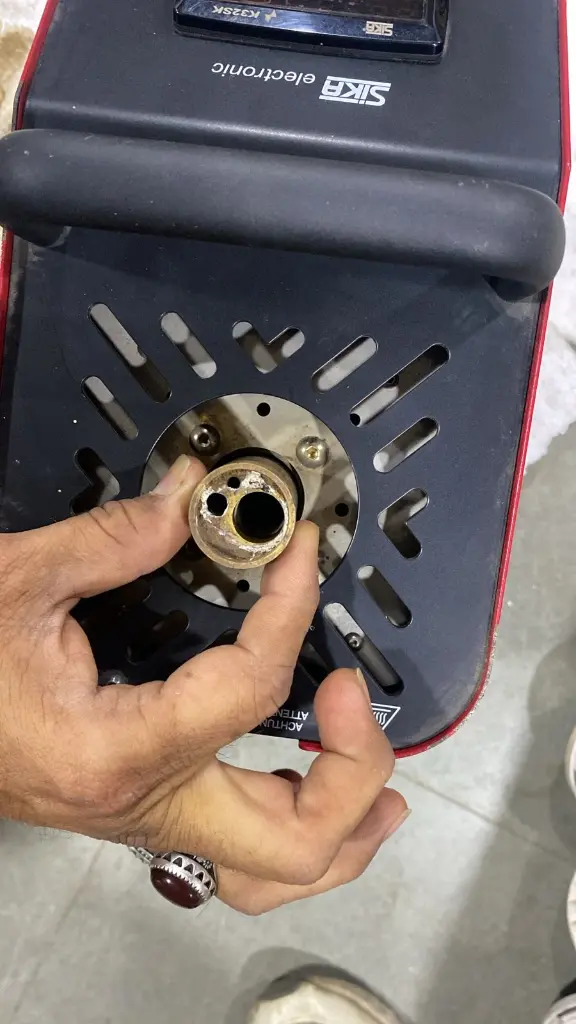

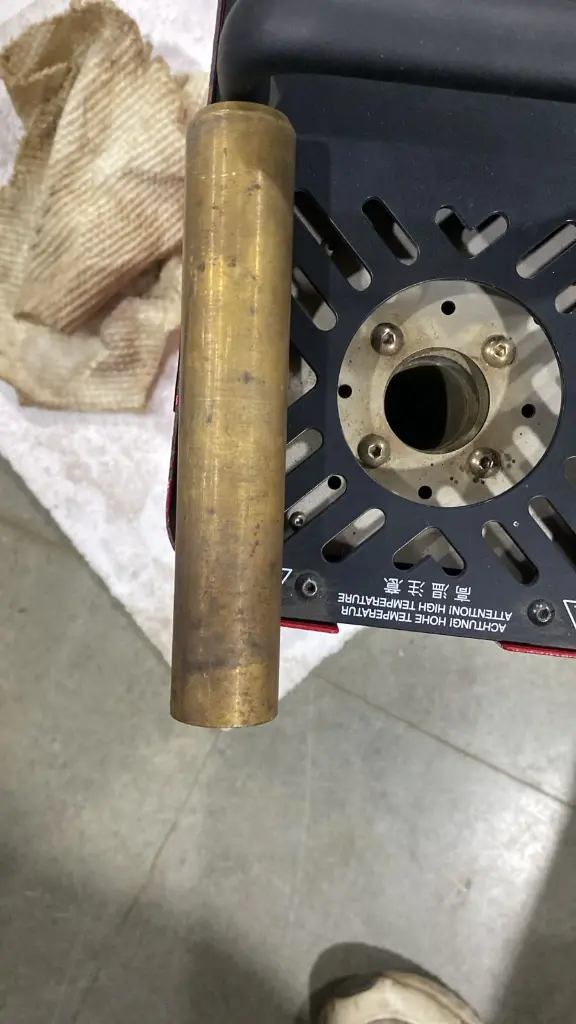

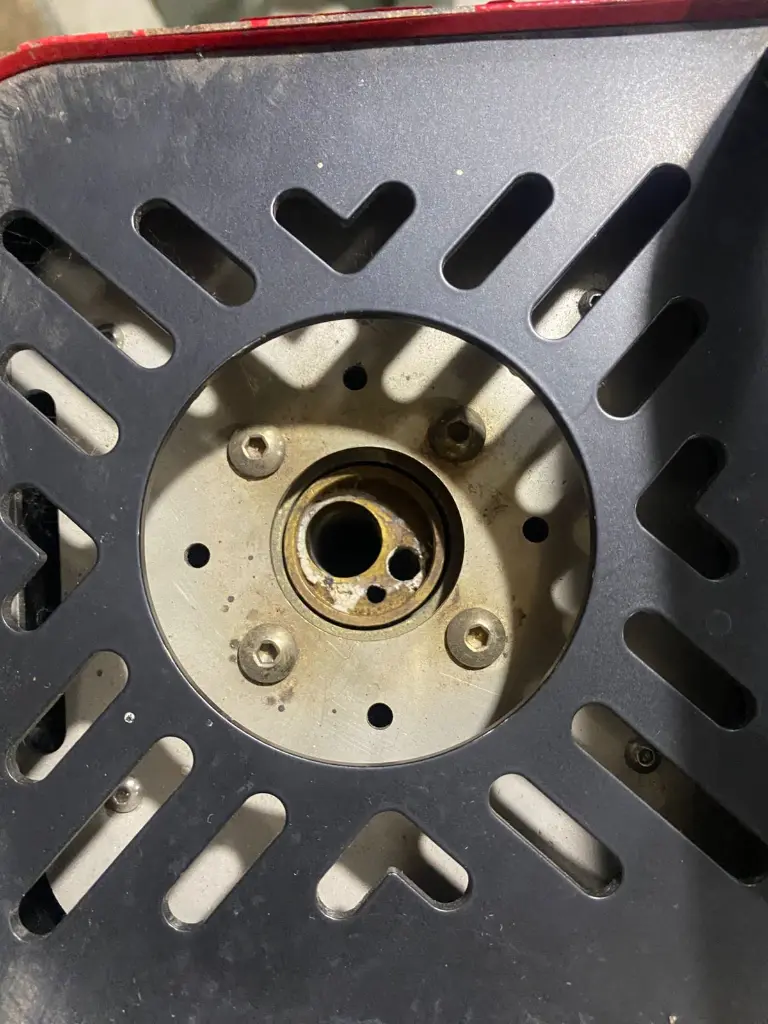

| Insert Type | Interchangeable dry block inserts (various bore sizes available) |
| Control Type | PID Temperature Controller with digital setpoint entry |
| Communication | RS-232 (optional for data logging) |
| Housing Material | Powder-coated Steel – Red / Black industrial enclosure |
| Dimensions | Portable bench-top design with carry handle |
| Protection Rating | IP20 |
| Operating Temperature | +5°C to +40°C (ambient) |
| Standards Compliance | CE Marked, GL Certified |
| Date of Manufacture | November 2013 |
| Manufacturer | Sika, Struthweg 7–9, 34260 Kaufungen, Germany |
| Country of Origin | Germany |
| Application | On-site Calibration, Laboratory Calibration, Thermocouple & RTD Verification, Temperature Transmitter Calibration |
| Suitable For | Oil & Gas, Power Plants, Chemical Plants, Marine, Pharmaceutical, Food & Beverage, Industrial Instrumentation |
| Condition | Used – Good and Working |
| Availability | In Stock |
Just drop us a message and we will get back to you as soon as possible.
Available for sale.
Ready Stock
Price: On Request
Worldwide Shipping
Testing video will be share before dispatch
